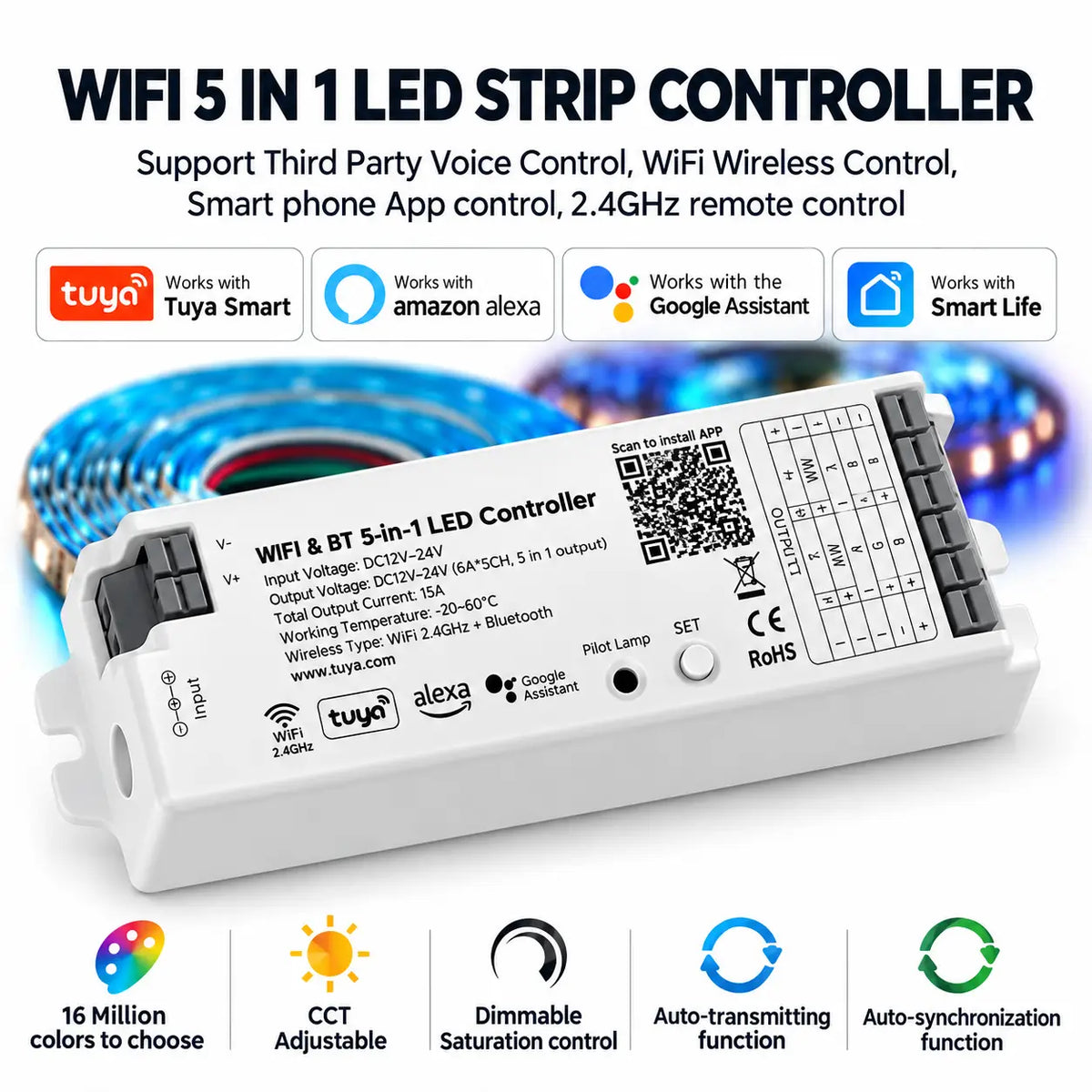

WiFi & Bluetooth 5-in-1 LED Controller – DIM, RGB, RGBW, CCT & RGB+CCT
Take full control of your LED strip lighting with the WiFi & Bluetooth 5-in-1 LED Controller. Designed for 12–24V DC LED lighting systems, this versatile controller supports single-colour dimming, RGB, RGBW, CCT and RGB+CCT LED strip lighting from one compact unit.
Control your lighting through WiFi, Bluetooth, Tuya Smart / Smart Life, Amazon Alexa, Google Assistant or a compatible 2.4GHz remote control. With up to 6A per channel and 15A total maximum output, it is suitable for residential, commercial, retail and architectural LED strip installations.
5-in-1 LED Strip Compatibility
One controller can be configured for multiple LED strip types, making it an excellent choice for installations where flexibility and future compatibility are important.
-
Single Colour / DIM – brightness control for standard single-colour LED strip
-
CCT / Tunable White – adjust between warm and cool white
-
RGB – full colour-changing LED control
-
RGBW – RGB colour control with an additional dedicated white channel
-
RGB+CCT – full RGB colour control plus adjustable white colour temperature
WiFi & Bluetooth Smart Control
Connect the controller to a compatible smartphone using the Tuya Smart or Smart Life app. Adjust brightness, colours, colour temperature, scenes, schedules and other lighting functions directly from your phone.
The controller also features Bluetooth wireless control, providing a convenient alternative for direct short-range operation.
Amazon Alexa & Google Assistant Compatible
Integrate your LED strip lighting into a compatible smart-home system using Amazon Alexa or Google Assistant. This allows convenient voice control of compatible lighting functions including switching, dimming and colour adjustment.

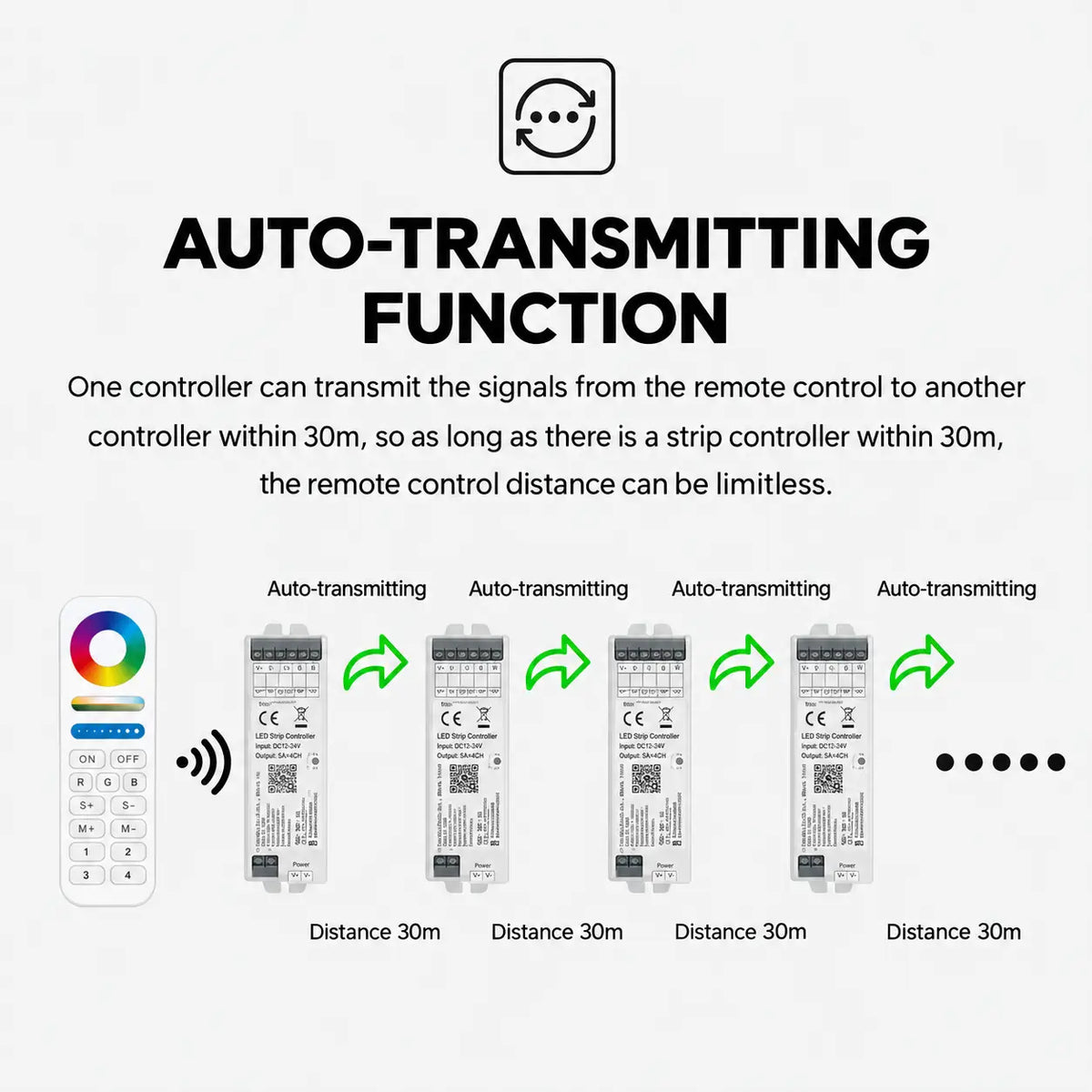

Auto-Transmitting for Extended Control Distance
One of the standout features of this controller is its auto-transmitting function. A compatible controller can relay the remote-control signal to another controller located within approximately 30 metres.
By positioning additional compatible controllers within range of one another, the wireless signal can continue to be transmitted from controller to controller. This makes the system particularly useful for larger homes, commercial spaces, shops, showrooms, restaurants, hotels and extensive LED strip installations.
Auto-Synchronisation Between Controllers
Compatible controllers can also operate in synchronisation mode. Multiple controllers can follow the same compatible dynamic lighting mode and speed, helping create a coordinated lighting effect across larger installations.
This is especially useful where several separate LED strip circuits need to operate together without being physically connected to the same controller.
Advanced Smart Lighting Functions
-
Up to 16 million colours with compatible RGB lighting
-
Adjustable colour temperature with compatible CCT LED strips
- Brightness and saturation adjustment

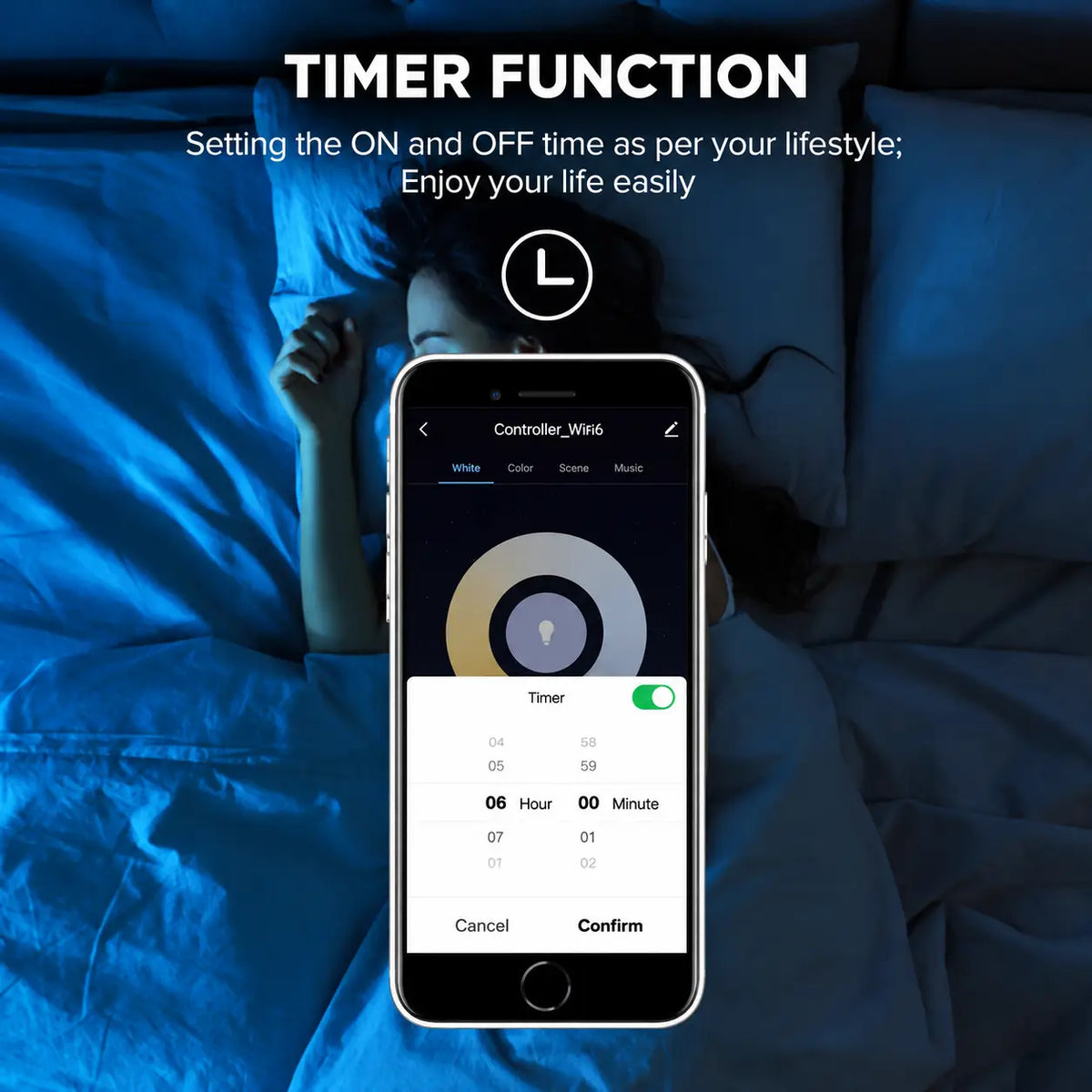

- Timer and scheduling control
- Countdown timer
- Music rhythm control
- Custom lighting scenes
- Device sharing
- Group control
- Tap-to-Run and smart automation
- Auto-transmitting wireless control
- Auto-synchronisation between compatible controllers
2.4GHz Wireless Remote Control
The controller is compatible with selected 2.4GHz wireless remote controls, allowing convenient control without using a smartphone.
Wireless remote control distance is up to approximately 30 metres under suitable conditions, with the auto-transmitting system capable of extending control through additional compatible controllers.
High-Capacity 12–24V DC Output
The controller operates from 12–24V DC and supports up to 6A per channel, with a maximum combined output of 15A.
This makes it suitable for a wide range of LED strip lighting applications including:
- Kitchen and under-cabinet lighting
- Residential feature lighting
- Architectural LED strip lighting
- Retail displays and showcases
- Shop and showroom lighting
- Hotels and hospitality venues
- Office lighting
- Exhibition displays
- Entertainment areas
- Decorative and landscape lighting systems
Key Features
- WiFi & Bluetooth 5-in-1 LED controller
- Supports DIM, RGB, RGBW, CCT and RGB+CCT LED strips
- 12–24V DC input
- 6A maximum per channel
- 15A maximum total output
- Tuya Smart compatible
- Smart Life compatible
- Amazon Alexa compatible
- Google Assistant compatible
- 2.4GHz WiFi control
- Bluetooth control
- Compatible 2.4GHz remote control
- Up to 30m remote control distance under suitable conditions
- Auto-transmitting between compatible controllers
- Auto-synchronisation between compatible controllers
- Timer and scheduling functions
- Scene control
- Music rhythm control
- Group control
- Dimmable
- IP20 rated
- 3-year warranty

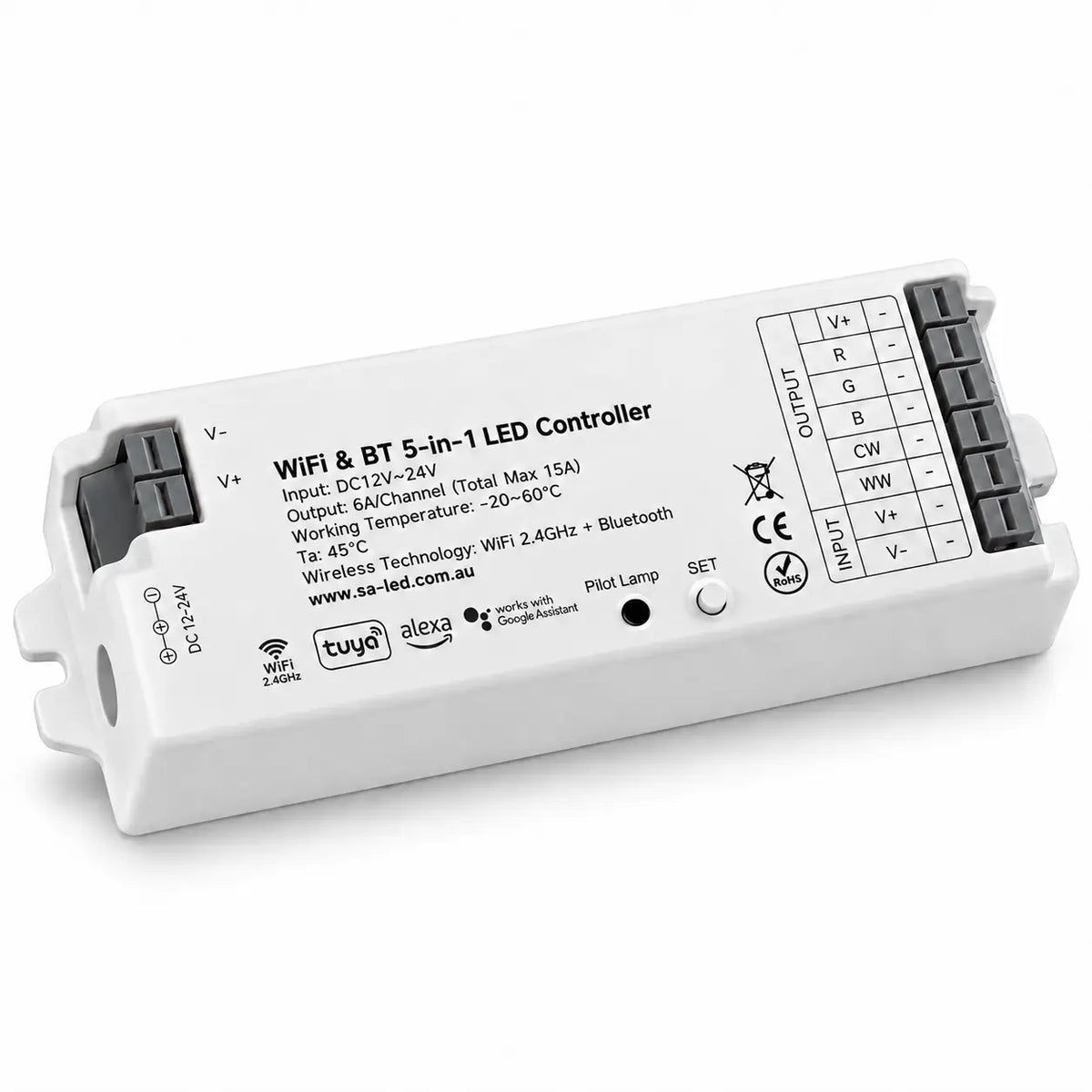

Technical Specifications
| Product Type |
WiFi & Bluetooth 5-in-1 LED Controller |
| Item Code |
SA 48B |
| Supported LED Types |
DIM / RGB / RGBW / CCT / RGB+CCT |
| Input Voltage |
12–24V DC |
| Maximum Output |
6A per channel / 15A total maximum |
| Wireless Control |
2.4GHz WiFi / Bluetooth / Compatible 2.4GHz Remote |
| Smart Home Compatibility |
Tuya Smart / Smart Life / Amazon Alexa / Google Assistant |
| Remote Control Distance |
Up to 30m under suitable conditions |
| Auto-Transmitting |
Yes – compatible controllers can relay control signals |
| Auto-Synchronisation |
Yes – compatible controllers can synchronise dynamic modes |
| Dimmable |
Yes |
| IP Rating |
IP20 |
| Working Temperature |
-20°C to +60°C |
| Dimensions |
123 × 40 × 30mm |
| Weight |
75g |
| Warranty |
3 Years |
Important Installation Information
The input voltage of the controller must match the voltage of the connected LED strip and power supply. The controller is designed for indoor installation in a suitable dry location. Always ensure the total connected LED load remains within the controller's maximum rated output.
