Description
SILICA FLEX – Architectural Side Bend LED Neon Flex
Seamless architectural lighting. Designed to follow the curves.
Introducing SILICA FLEX 12×20mm Side Bend LED Neon Flex, a professional architectural lighting solution designed to create beautiful, continuous lines of warm white illumination.
Featuring a flexible silicone housing and side-emitting optical design, SILICA FLEX delivers smooth, uniform light without the visible LED dots commonly associated with conventional LED strip lighting.
Its 3000K warm white output creates an inviting architectural glow, making it ideal for contemporary interiors, landscape features, decorative installations and creative lighting designs.
Operating at 24V DC and consuming just 9.6W per metre, SILICA FLEX combines flexible installation with efficient, professional-grade performance.
Key Features
- Side Bend Design: Flexible construction designed to follow curves in the manufacturer's approved bending direction.
- Continuous Neon Effect: Smooth, diffused illumination for an elegant architectural finish.
- 3000K Warm White: Inviting warm light for residential and commercial environments.
- 12×20mm Profile: Substantial architectural neon profile with a clean, modern appearance.
- 24V DC Operation: Low-voltage constant-voltage lighting system.
- 9.6W per Metre: Energy-efficient illumination delivering approximately 326 lumens per metre.
- IP65 Rated: Dust-tight and protected against water jets, suitable for appropriately installed indoor and outdoor applications.
- UV-Resistant Silicone: Durable silicone construction designed for outdoor environments.
- 50mm Cutting Intervals: Allows precise length adjustment at designated cutting points.
- 3-Year Manufacturer Warranty: Professional lighting backed by the manufacturer's stated warranty.
Architectural Applications
SILICA FLEX Side Bend offers exceptional design flexibility for applications requiring continuous, curved or straight illuminated lines.
- Architectural wall outlines and decorative features

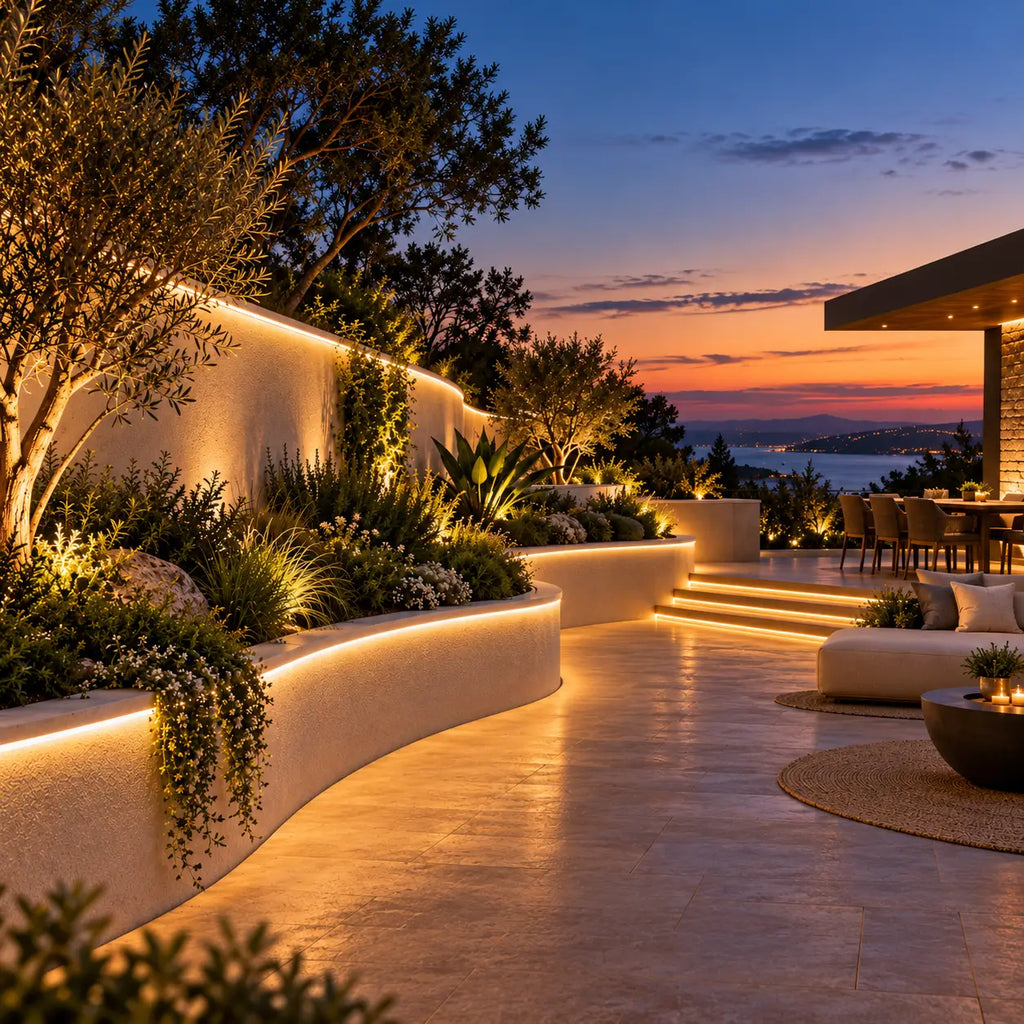

- Landscape and garden lighting
- Outdoor entertaining and alfresco areas
- Building facades and exterior lighting features
- Commercial interiors and hospitality environments
- Custom signage and decorative installations

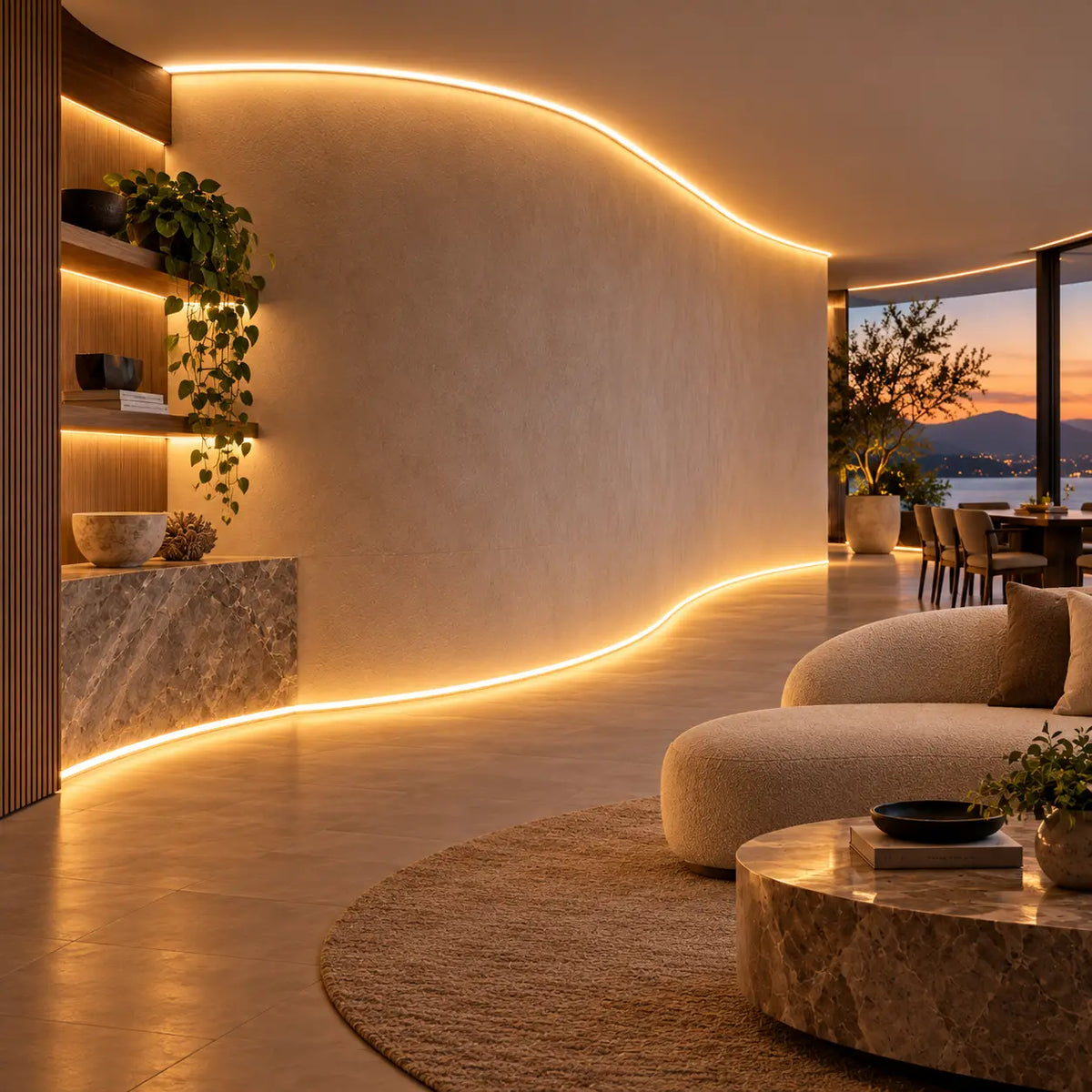

- Interior feature walls and creative lighting designs
- Residential and commercial linear lighting projects
Technical Specifications
| Range | SILICA FLEX |
| Manufacturer Model | GE-NF-24V-5M-12MM-20MM-WW |
| Bending Type | Side Bend |
| Dimensions | 12mm × 20mm |
| Colour Temperature | 3000K Warm White |
| Voltage | 24V DC |
| Power Consumption | 9.6W/m |
| Luminous Output | 326lm/m |
| LED Density | 120 LEDs/m |
| CRI | 80+ |
| Beam Angle | ≥120° |
| IP Rating | IP65 |
| Cutting Interval | 50mm |
| Minimum Bend Diameter | 100mm |
| Maximum Run Length | 5 metres |
| Price Length | 1 metre |
| Warranty | 3 Years |
Flexible by Design
Unlike conventional rigid linear lighting, SILICA FLEX can follow suitable architectural curves while maintaining a smooth and continuous illuminated appearance.
The side bend construction allows the strip to curve in its designated bending plane, making it particularly useful for decorative outlines, flowing architectural features and creative lighting installations.
Installation & Accessories
SILICA FLEX operates using a compatible 24V DC constant-voltage LED driver. Suitable mounting clips, profiles and termination accessories should be selected according to the project requirements.
The strip may be cut every 50mm at designated cutting marks, allowing accurate preparation of custom lengths.
All cut ends, electrical connections and terminations must be correctly sealed and protected to maintain the required ingress protection.
LED driver and installation accessories are supplied separately unless specified otherwise.
Customised Lighting Solutions by Green Earth
Creating a beautiful architectural lighting installation involves more than selecting the right LED strip.
At Green Earth, we can assist with custom lengths, compatible power supplies, suitable mounting accessories and project-specific lighting configurations.
With lighting industry experience dating back to 1994, we bring practical product knowledge and personalised technical support to residential and commercial lighting projects.
Planning a project? Contact Green Earth to discuss your SILICA FLEX requirements and our Strip Light Customisation service.
