SILICA FLEX PRO – 16 × 16mm Top Bend LED Neon Flex | 24V IP67
Professional architectural linear lighting with a seamless, continuous glow.
Introducing SILICA FLEX PRO, a premium 16 × 16mm top bend LED neon flex designed for contemporary residential, commercial and landscape lighting applications. Combining a beautifully diffused, dot-free lighting appearance with a robust IP67-rated construction, SILICA FLEX PRO delivers elegant illuminated lines for both indoor and outdoor projects.
Operating on safe, low-voltage 24V DC, this flexible neon lighting solution produces up to 556 lumens per metre while consuming just 9.6 watts per metre.
Its innovative solderless connection system allows compatible power leads, end caps and accessories to be assembled without traditional soldering, offering greater flexibility for customised installations.
Why Choose SILICA FLEX PRO?
- Seamless Neon Lighting: Continuous, uniformly diffused illumination without visible LED dots.

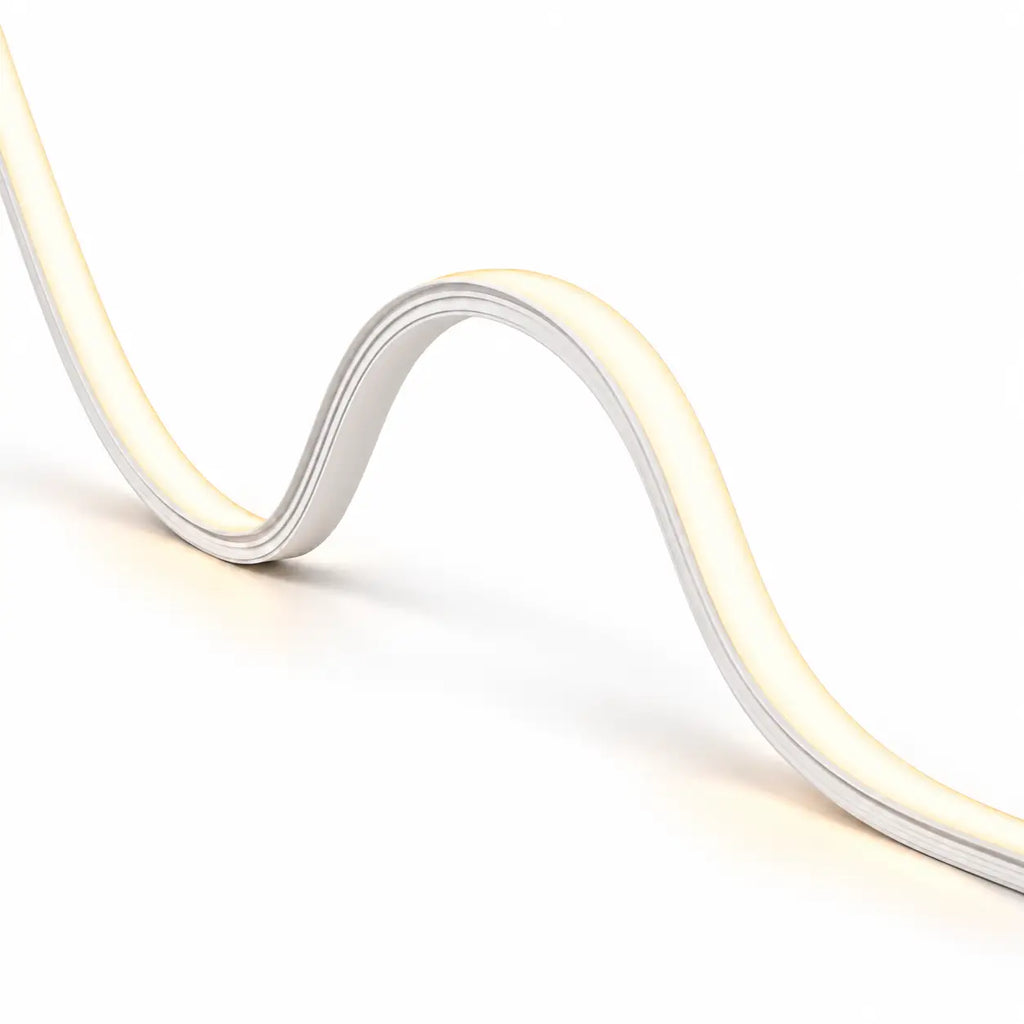

- Top Bend Flexibility: Designed to bend vertically for architectural contours and suitable curved installations.
- IP67 Protection: Dust-tight construction with protection against temporary water immersion when correctly assembled and sealed.
- 24V DC Operation: Low-voltage operation suitable for professional lighting systems.
- Energy Efficient: Just 9.6W per metre with light output up to 556lm/m.
- Solderless Connections: Innovative transparent connector and end-cap system simplifies custom assembly.
- Custom Lengths: Cuttable every 50mm at designated cutting marks.
- Multiple Colour Temperatures: Available from warm 2700K through to crisp 6500K white.
- Professional Quality: High-polymer construction with an anti-dust surface treatment.
- 3-Year Manufacturer Warranty: Supported by the manufacturer's stated warranty.
Where Can SILICA FLEX PRO Be Used?
SILICA FLEX PRO is ideal for creating striking architectural lighting effects across a variety of projects, including:

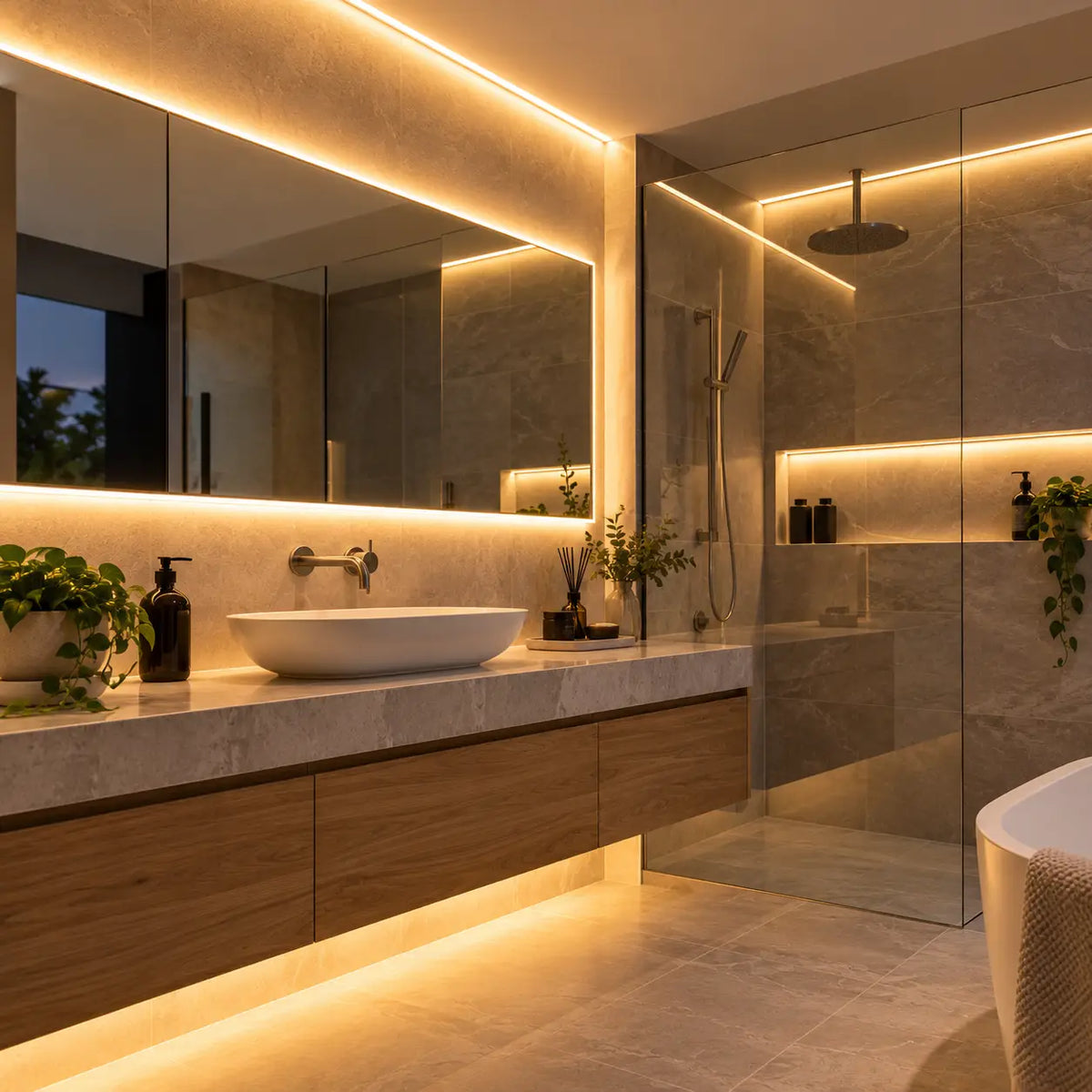

- Contemporary bathroom and vanity feature lighting

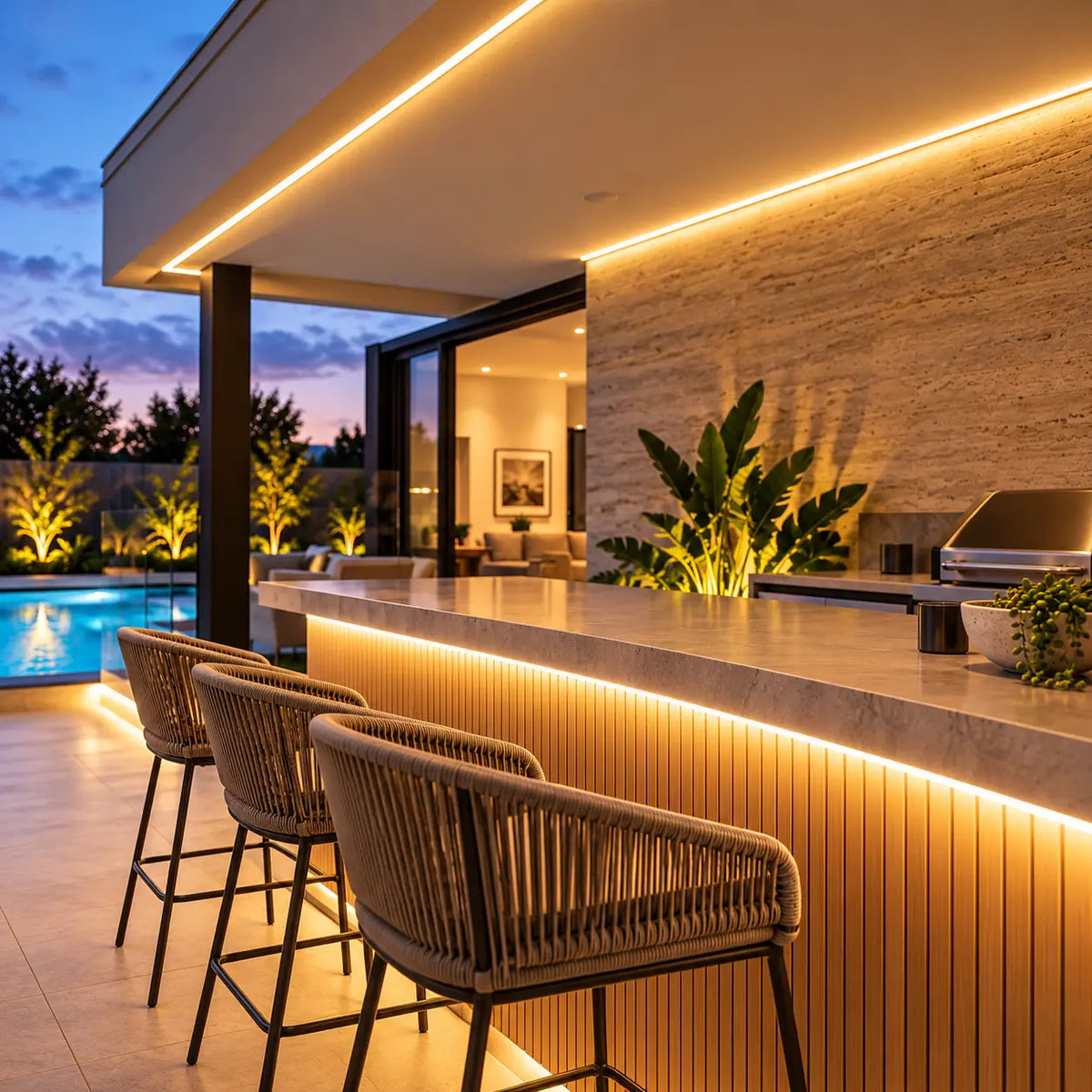

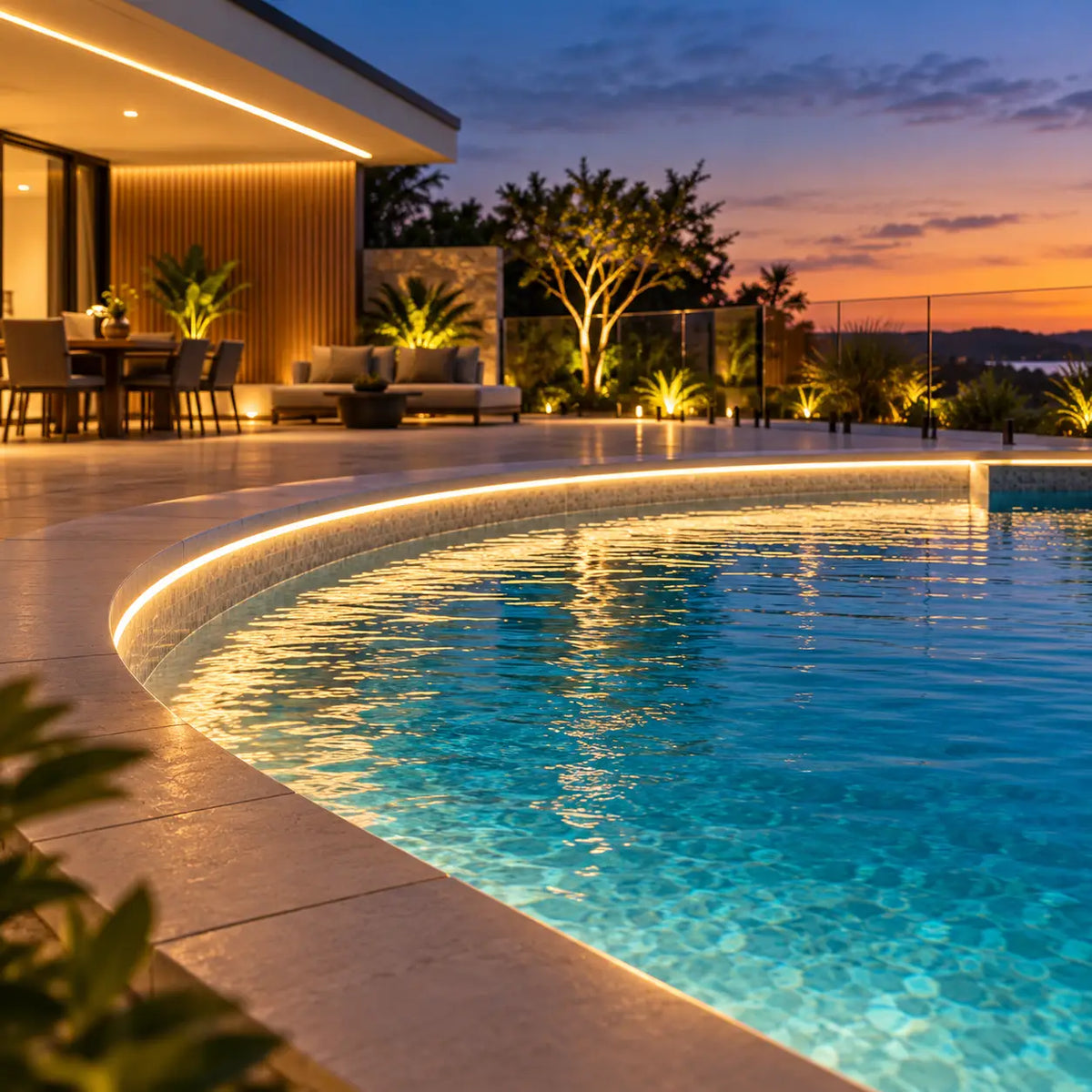

- Outdoor entertaining areas and alfresco spaces

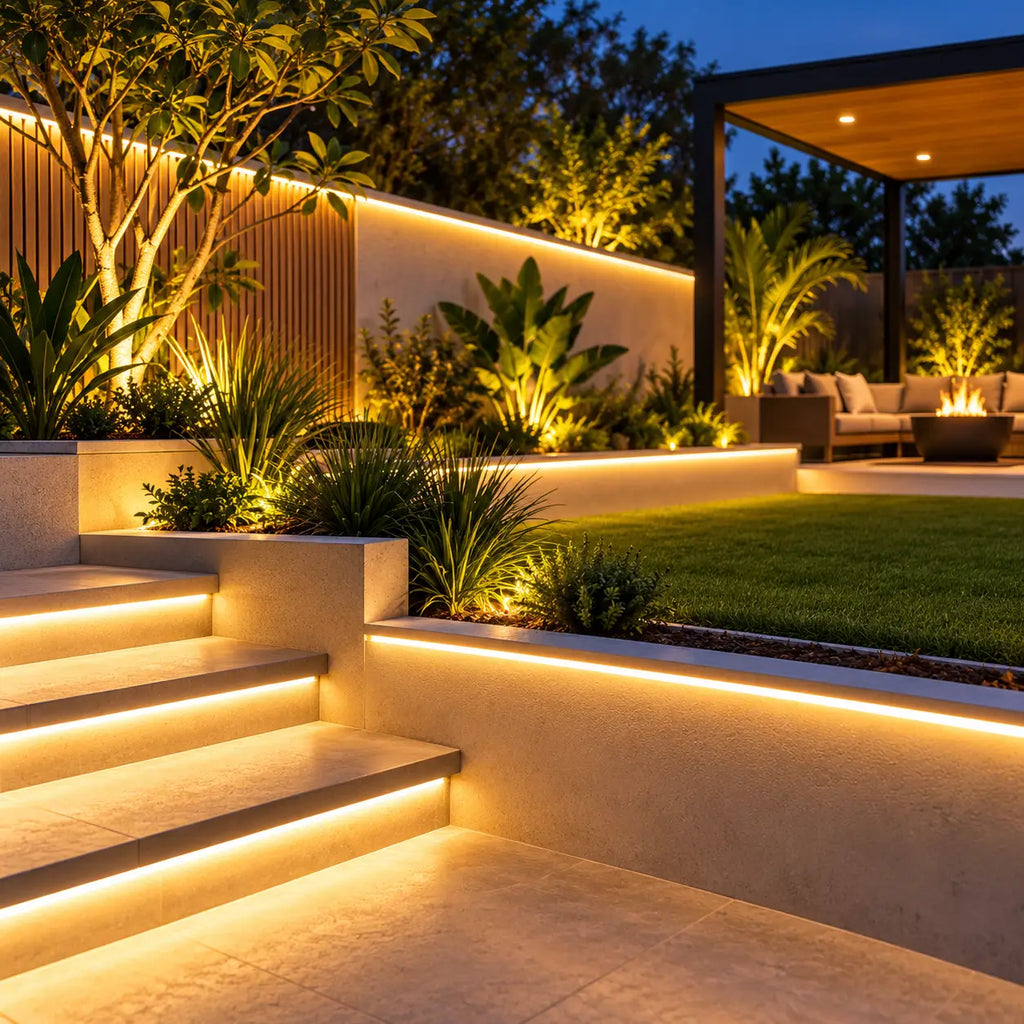

- Garden walls, landscape features and pathways
- Architectural ceiling lines and recessed details
- Commercial interiors, reception areas and hospitality venues
- Staircase and step feature lighting
- Building facades and exterior architectural details
- Decorative linear lighting installations
Important: Top bend neon flex bends in its designated vertical bending direction. It is not designed for sideways bending or twisting. Select a suitable side bend product where horizontal bending is required.
Technical Specifications
| Product Range | SILICA FLEX PRO |
| Manufacturer Model | SFTB1616IP673K |
| Product Type | Top Bend LED Neon Flex |

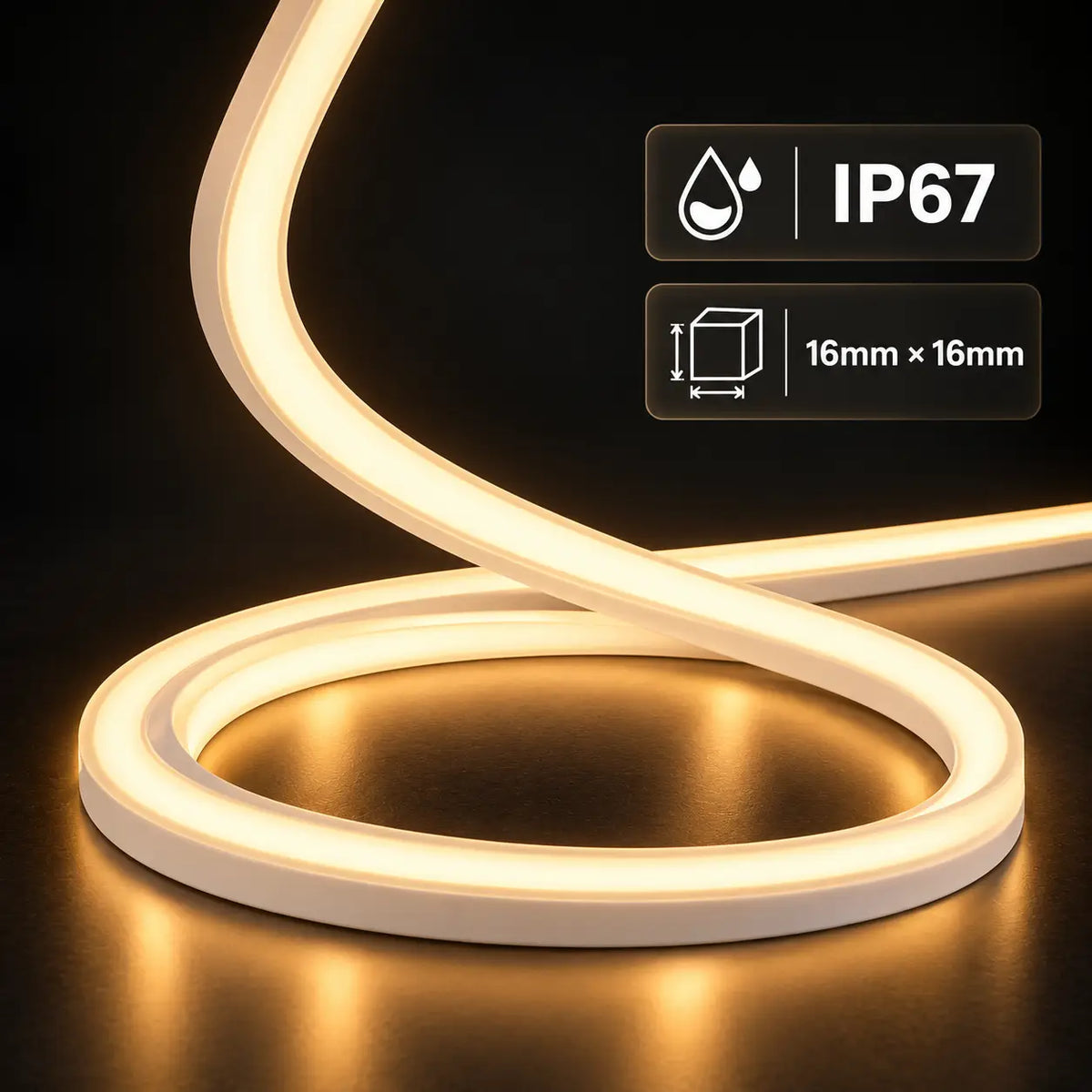

| Dimensions | 16mm Wide × 16mm High |
| Operating Voltage | 24V DC |
| Power Consumption | 9.6W per metre |
| LED Density | 120 LEDs per metre |
| Colour Rendering Index | CRI 80+ |
| Beam Angle | ≥120° |
| IP Rating | IP67 |
| Standard Length | 5 metres |
| Maximum Run Length | 5 metres |
| Cutting Increments | 50mm |
| Minimum Bend Diameter | 120mm |
| Connection System | Solderless compatible end caps |
| Warranty | 3 Years |
Available Colour Temperatures
| Colour Temperature | Light Output | Efficacy |
|---|---|---|
| 2700K – Extra Warm White | 480lm/m | 50lm/W |
| 3000K – Warm White | 480lm/m | 50lm/W |
| 4000K – Neutral White | 556lm/m | 58lm/W |
| 5000K – Cool White | 528lm/m | 55lm/W |
| 6500K – Daylight White | 528lm/m | 55lm/W |
Innovative Solderless Connection System
The SILICA FLEX PRO system features an innovative transparent solderless end-cap design, allowing installers to assemble compatible connections without soldering.
Available connection options include:
- Straight-out power connection
- Side-exit power connection
- Bottom-exit power connection
- Matching end termination caps
- Linear joining connectors
- Aluminium mounting clips
- Aluminium mounting profiles
- Flexible curved mounting profiles
Accessories may be supplied separately depending on the selected configuration.
Professional Lighting Support from Green Earth
At Green Earth, we understand that every architectural lighting project is different. Our team can assist with selecting suitable LED neon flex, compatible drivers, mounting accessories and connection configurations for your application.
Whether you're creating a single illuminated feature or planning a complete architectural lighting installation, we're here to help you find the right solution.
Need help with your project? Contact Green Earth for product advice, custom length requirements and project pricing.
