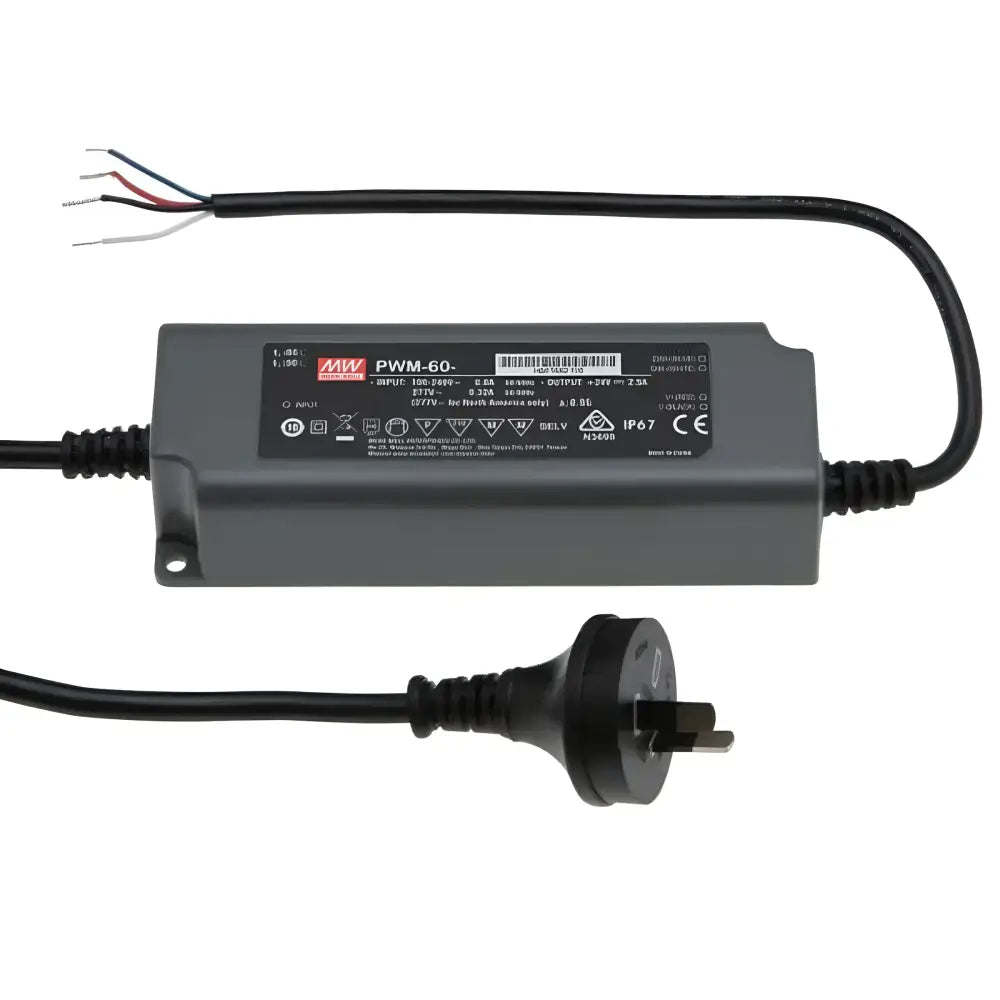

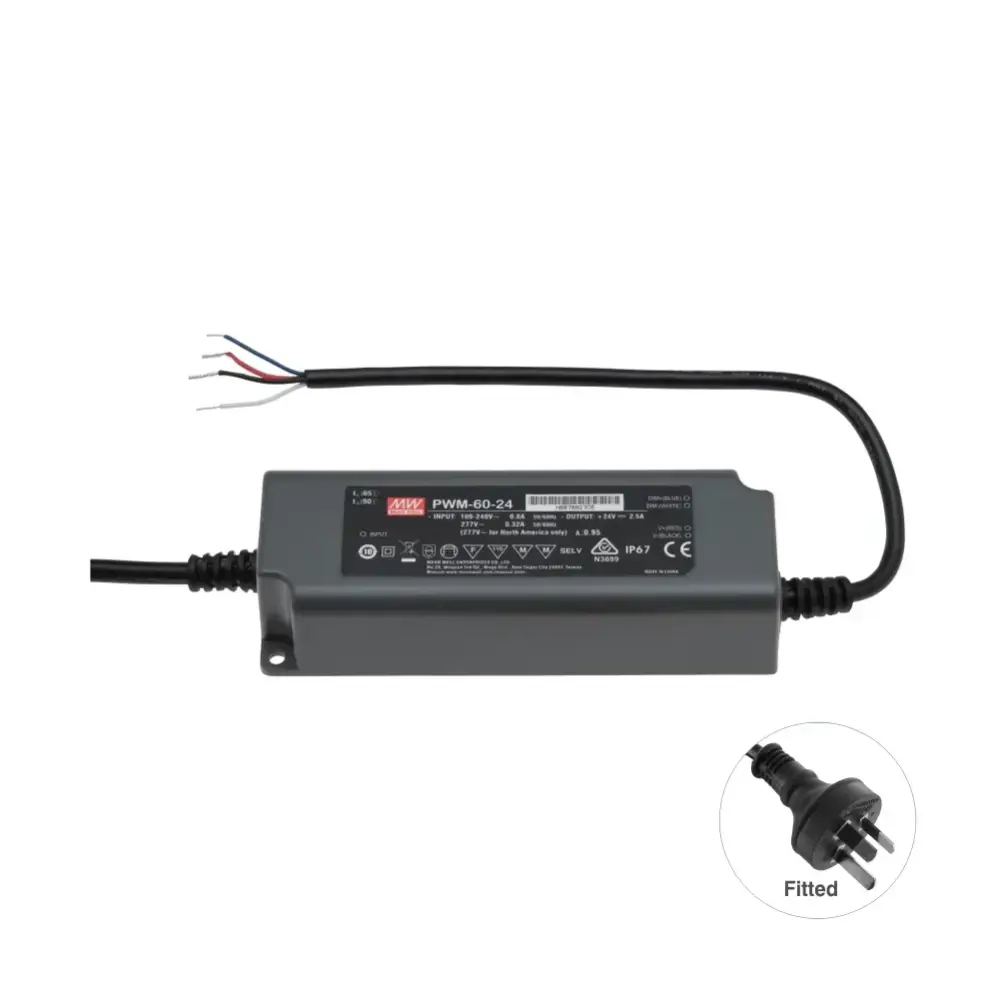

24V 60W Weatherproof LED Driver | Dali Dimmable IP67

SKU: PWM-60-24DA

Price:
Sale price$145.00

Shipping calculated at checkout

Stock:
In stock
 More payment options

Description

The 24V 60W is a PWM output LED driver with DALI dimming providing 2.5A @ 24VDC.  This driver is your best choice for dimming constant voltage LED strip, it will give an even dimming range to zero regardless of load matching as well as maintaining colour temperature.

When selecting a LED driver or any power supply, it is good practice to allow at least 20% additional capacity of the intended load – this will ensure longevity of the power supply.

Specifications
Input Type
1.8M Flex & Plug
Input Voltage
90 ~ 305VAC
Input Current
0.4A / 230VAC, 0.32A / 277VAC
Output Voltage
24V
Output Current
2.5A
Constant Current Region
N/A
Rated Output Power
60W
Output Type
PWM Output
Output Connector
300mm cable
Output Voltage Adjustment
N/A
Output Current Adjustment Range
N/A
Auxiliary Power
N/A
Remote Functions
N/A
Dimming Function
Yes
Dimming / Control Options
Dimmable
Control Options
DALI 2
Prescribed Electrical Item
Yes
SELV
Yes
Efficiency
89.00%
Operating Temperature Range
Tcase=-40 ~ +85ºC (Please refer to "OUTPUT LOAD vs TEMPERATURE" section in Data Sheet)
Warranty
5 Years
Approvals
CE, CB, RCM
IP Rating / Environmental Protection
IP67
Dimensions
150*53*35mm (L*W*H)
Recommended for New Designs
Yes
