The Philips Xi 20W 24V Constant Voltage LED Driver (Model: 929002105580) is a compact, high-efficiency LED power supply solution designed for indoor commercial and residential applications. Delivering a stable 24V DC output with a maximum 20W power rating, this IP20-rated driver ensures safe, efficient, and long-lasting LED performance.
Ideal for use in retail display lighting, linear accent lighting, shelf lighting, and refrigerated displays, this constant voltage LED driver supports a wide ambient operating temperature range from -20°C to +85°C. With an impressive 87% efficiency rating, it not only reduces energy consumption but also extends the lifespan of your LED installations.
Installation is made simple with screw terminal connectors, and the compact housing (150 × 40 × 30 mm) allows for seamless integration in tight spaces. Engineered by Philips, it complies with California Title 24, is SELV-rated for safety, and backed by a 5-year warranty.
Key Features:
• Input Voltage: 220–240VAC
• Output Voltage: 24V DC
• Rated Output Power: 20W
• Current Output: 0.83A
• Efficiency: 87%
• IP Rating: IP20 (indoor use only)

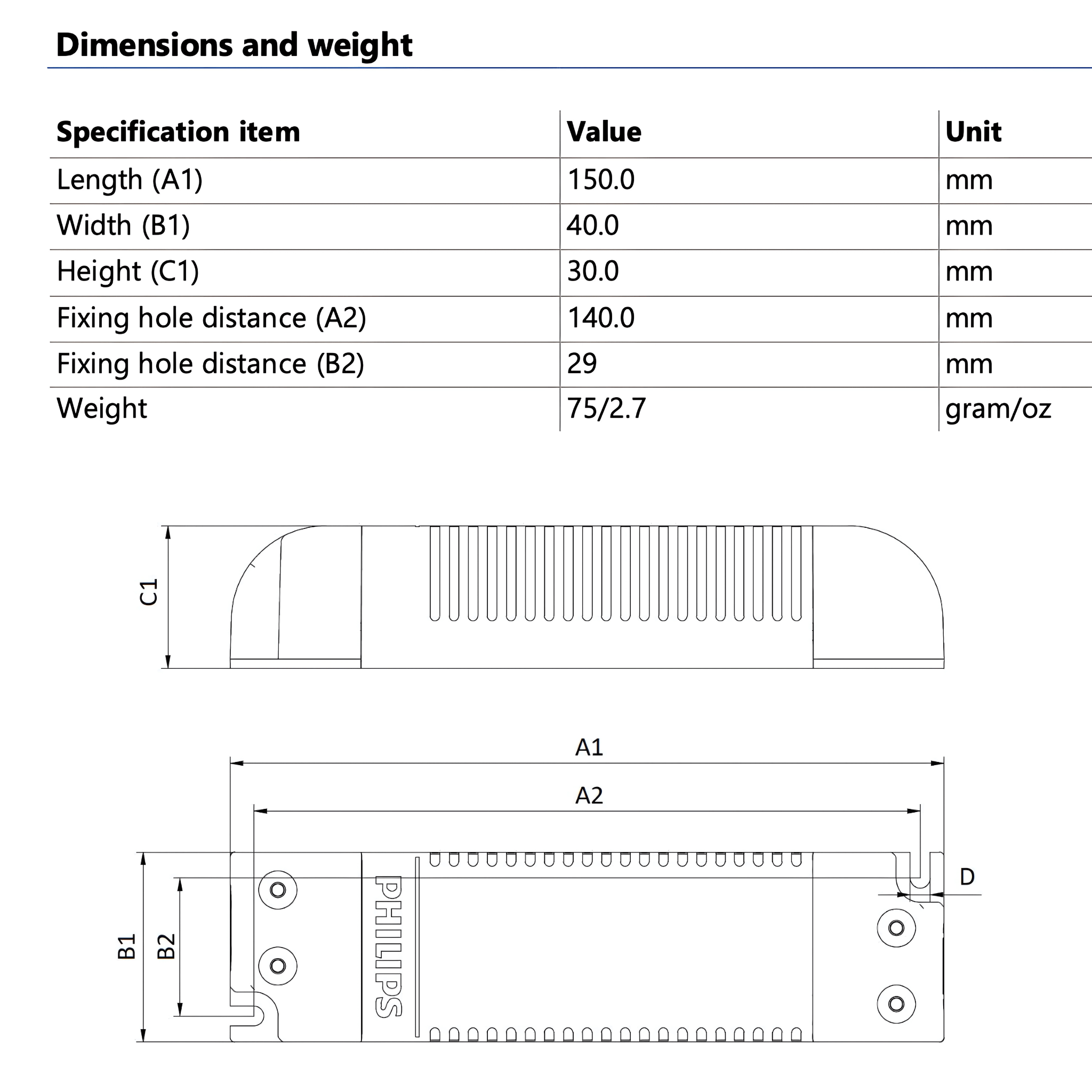

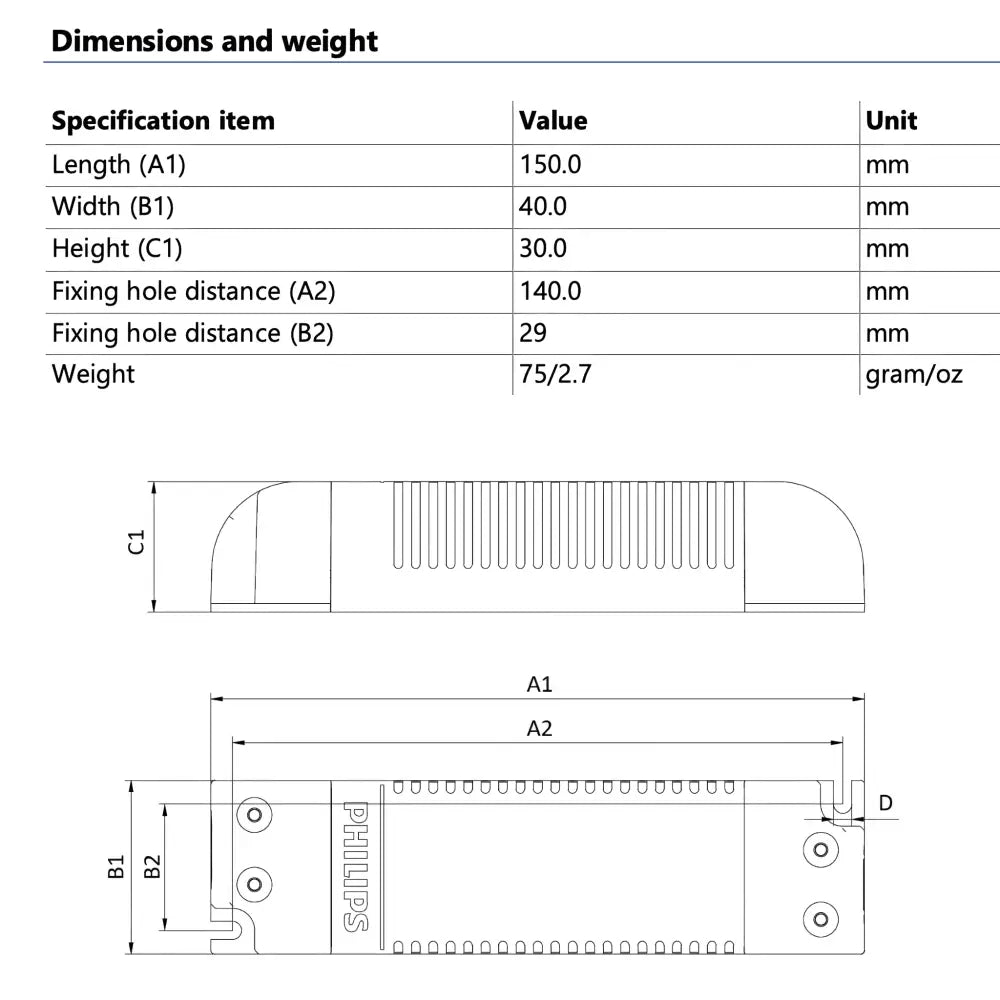

• Dimensions: 150 × 40 × 30 mm
• Certifications: CE, RCM, CCC, CB
• SELV Compliant
• Warranty: 5 Years
Applications:
• Retail & Shelf Lighting
• Linear Accent Lighting
• Refrigerated & Cooler Displays
• Cove and Architectural Lighting
