MEAN WELL XLG Series IP67 LED Driver – 320W 12V / 24V
Power large LED strip lighting installations with a genuine MEAN WELL XLG Series LED driver, designed for reliable indoor and outdoor lighting applications.
The XLG-320 is the highest-powered model in the XLG Series and is available for 12V and 24V LED strip lighting applications. It is suitable for powering a wide range of SMD and COB LED strip lighting, including IP20, IP54, IP65, IP67 and IP68 LED strip.
The driver itself is IP67 rated, providing excellent protection against dust and moisture. Its heavy-duty metal enclosure makes it ideal for larger architectural lighting installations, outdoor lighting, signage, commercial projects and high-output LED strip systems where a powerful and reliable power supply is required.

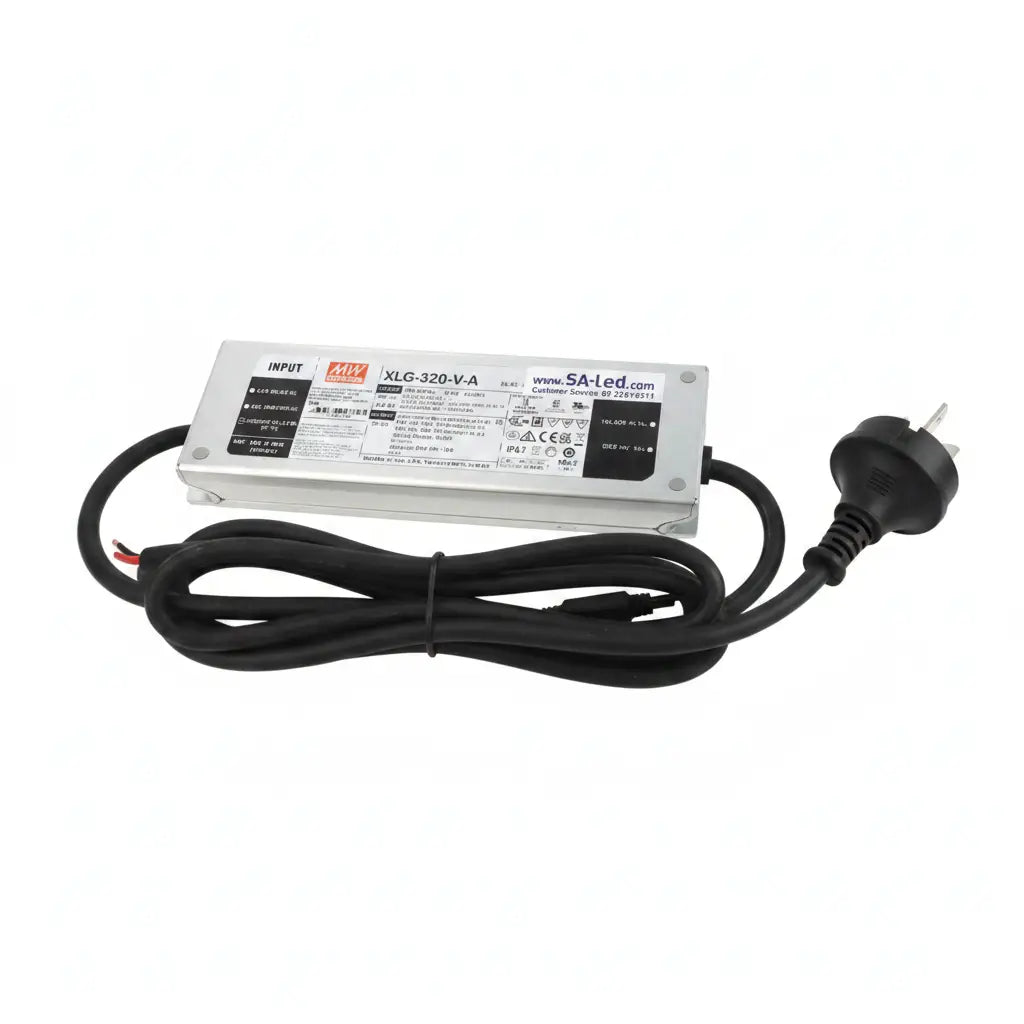

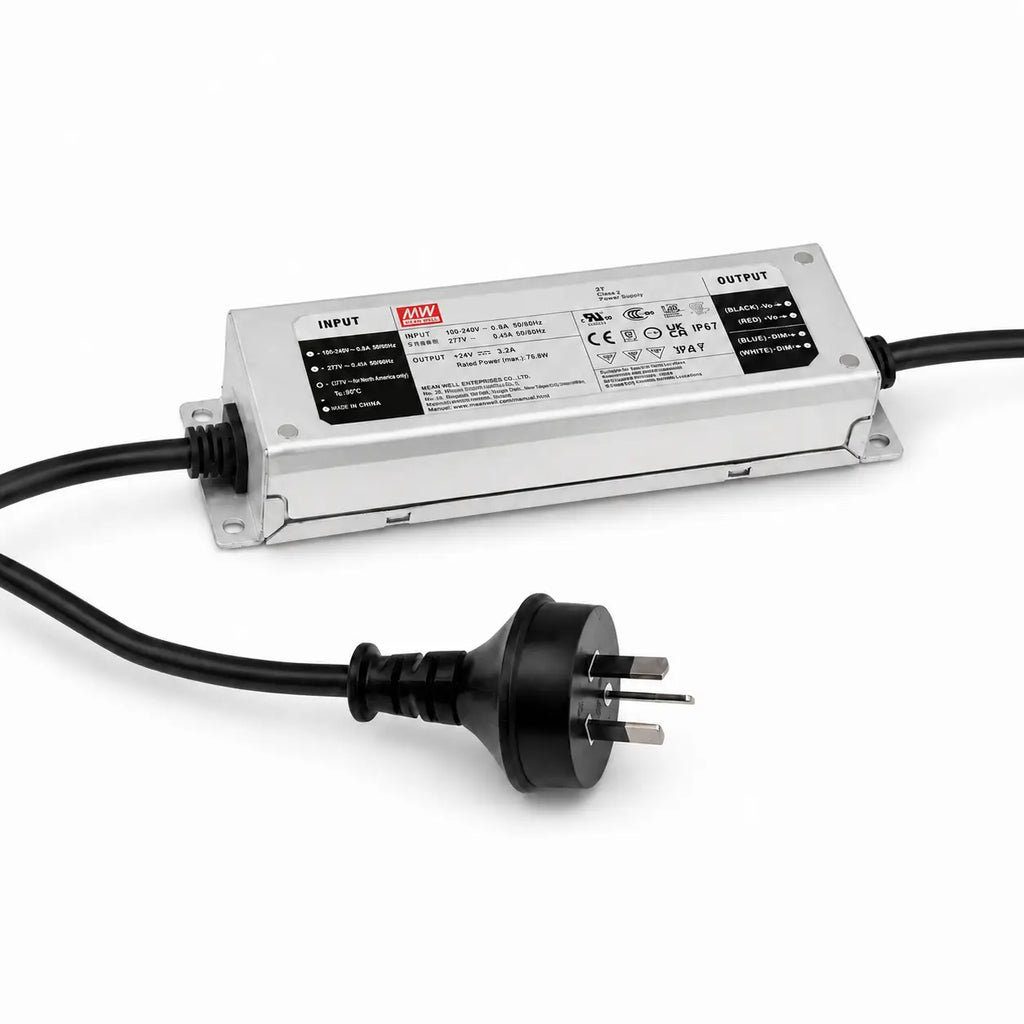

For easy installation, our Australian versions come with a factory-fitted Australian flex and plug, allowing the driver to be connected to a standard Australian power outlet.
For reliable operation and longer service life, we recommend a maximum connected LED load of approximately 170W for the 12V model and 250W for the 24V model.
Genuine MEAN WELL Power Supply
We supply genuine MEAN WELL XLG Series LED drivers approved for the Australian market.
MEAN WELL is one of the world's leading manufacturers of LED drivers and power supplies, widely used in residential, commercial, architectural and professional lighting applications.
Each driver is backed by a 5-year manufacturer's warranty.
Suitable For
- COB LED strip lighting
- SMD LED strip lighting
- Indoor LED strip
- Outdoor LED strip
- IP20 to IP68 LED strip lighting
- Architectural lighting
- Commercial LED strip installations
- Outdoor lighting
- Signage and display lighting
- Aluminium profile LED strip installations
- Long LED strip lighting runs
- High-output LED strip installations
- Large feature lighting installations
- Retail and display lighting
Available Models
MEAN WELL XLG-320 12V
-
Output Voltage: 12V DC
-
Rated Output Current: 18A
-
Rated Output Power: 216W
-
Recommended Maximum LED Load: 170W
MEAN WELL XLG-320 24V
-
Output Voltage: 24V DC
-
Rated Output Current: 13A
-
Rated Output Power: 312W
-
Recommended Maximum LED Load: 250W
Technical Specifications
| Brand |
MEAN WELL |
| Series |
XLG-320 |
| Input Voltage |
100–305V AC |
| Output Voltage |
12V DC or 24V DC |
| Rated Output Power |
216W @ 12V / 312W @ 24V |
| Recommended Maximum Load |
170W @ 12V / 250W @ 24V |
| Output Current |
18A @ 12V / 13A @ 24V |
| Dimming |
Non-dimmable |
| IP Rating |
IP67 |

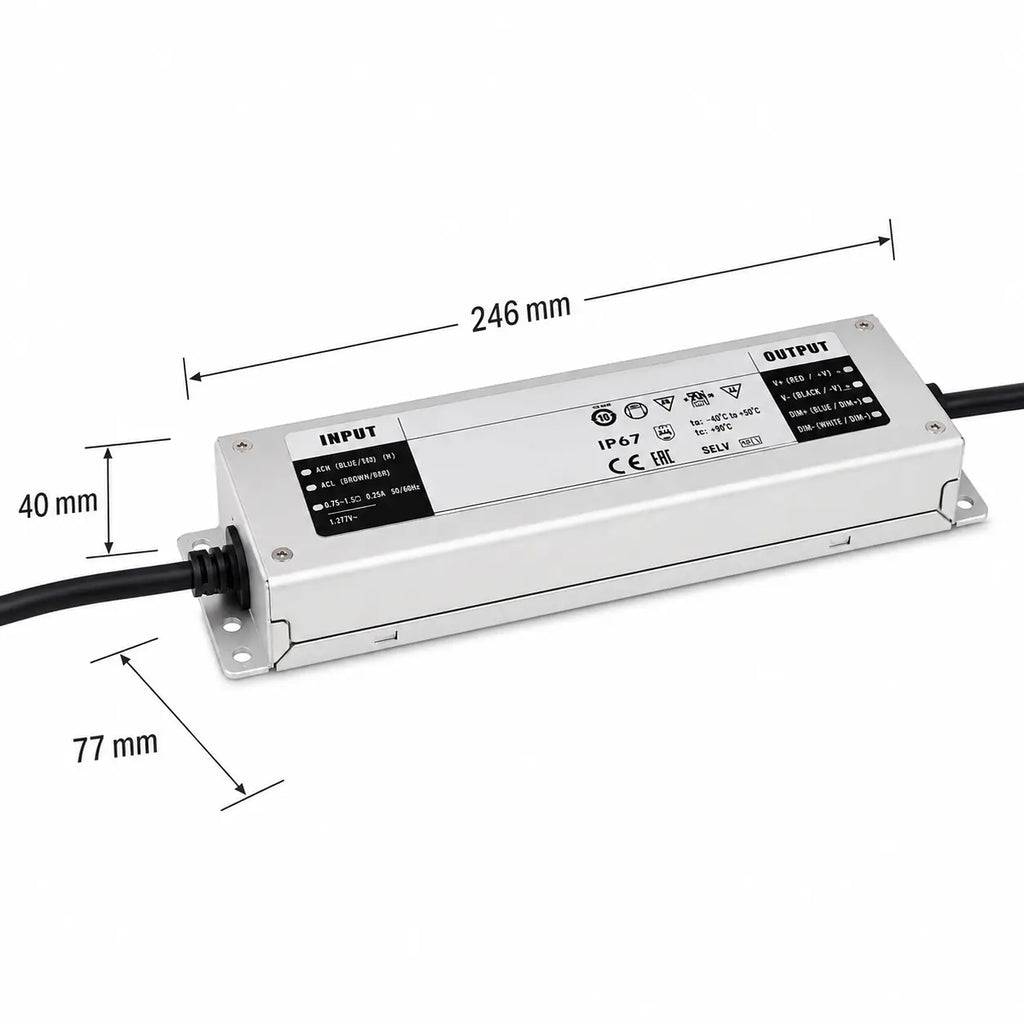

| Dimensions |
246 × 77 × 39.5mm |
| Warranty |
5 Years |
| Suitable LED Types |
SMD & COB LED Strip |
| Suitable Strip IP Ratings |
IP20–IP68 |
Recommended Maximum LED Load
For reliable long-term operation, we recommend running the XLG-320 below its absolute maximum output capacity.
The 12V version provides up to 216W, so we recommend a maximum connected LED load of approximately 170W.
The 24V version provides up to 312W, so we recommend a maximum connected LED load of approximately 250W.
This provides additional operating headroom and helps reduce heat, particularly in large installations or applications where the lighting operates for extended periods.
Approximate LED Strip Capacity – 24V Model
- 25 metres of 10W/m LED strip
- 20 metres of 12W/m LED strip
- 16 metres of 15W/m LED strip
- 12.5 metres of 20W/m LED strip
- 10 metres of 25W/m LED strip
Important: Choose the 12V model for 12V LED strip and the 24V model for 24V LED strip. Never connect a 12V LED strip to a 24V driver or vice versa.
