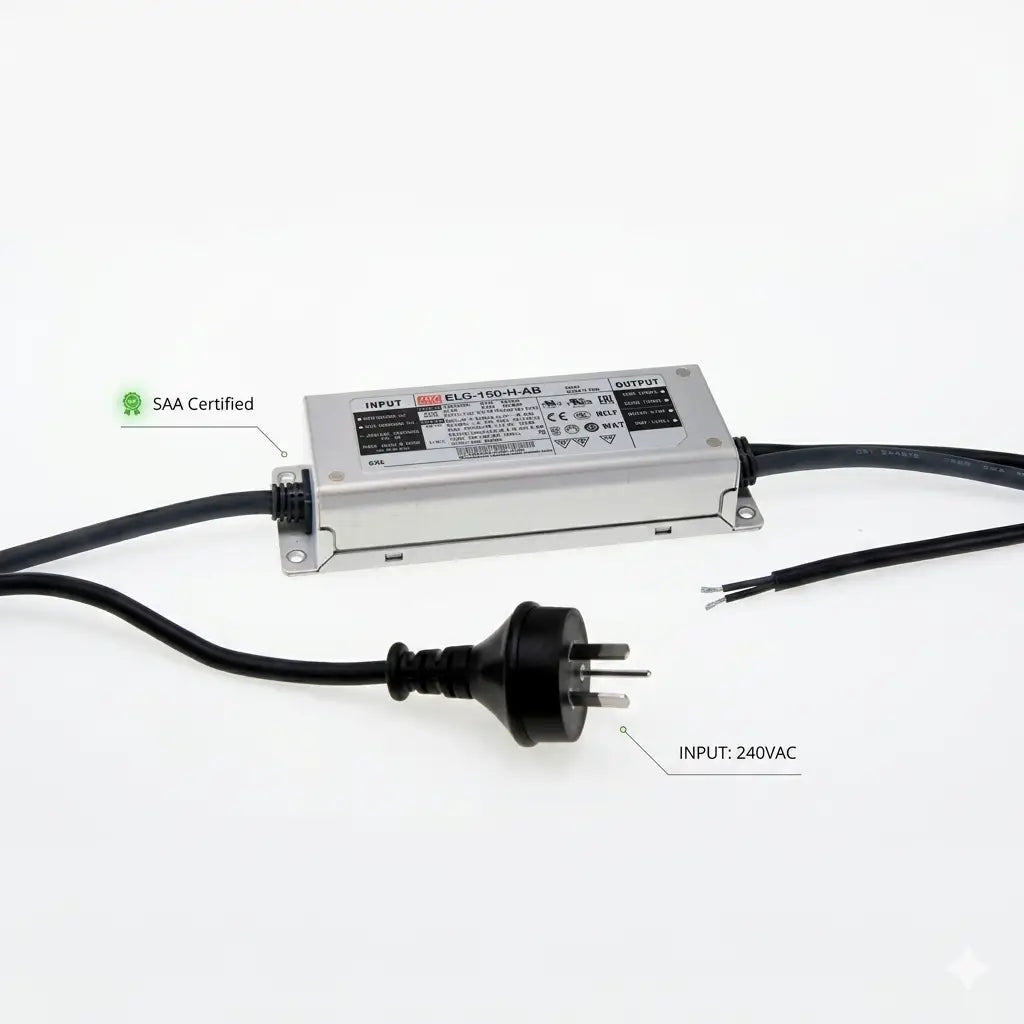

MEAN WELL XLG Series IP67 LED Driver – 150W 12V / 24V
Power larger LED strip lighting installations with a genuine MEAN WELL XLG Series LED driver, designed for reliable indoor and outdoor lighting applications.
Available in 12V and 24V versions, these 150W drivers are suitable for powering a wide range of SMD and COB LED strip lighting, including IP20, IP54, IP65, IP67 and IP68 LED strip.
The driver itself is IP67 rated, providing excellent protection against dust and moisture. Its rugged metal enclosure makes it suitable for kitchens, bathrooms, outdoor areas, signage, cabinetry, architectural lighting and larger LED strip installations where a durable power supply is required.
For easy installation, our Australian versions come with a factory-fitted 1.8 metre Australian flex and plug, allowing the driver to be connected directly to a standard Australian power outlet.
For reliable operation and longer service life, we recommend a maximum connected LED load of 120W.
Genuine MEAN WELL Power Supply
We supply genuine MEAN WELL XLG Series LED drivers approved for the Australian market.
MEAN WELL is one of the world's leading manufacturers of LED drivers and power supplies, widely used in residential, commercial, architectural and professional lighting applications.
Each driver is backed by a 5-year manufacturer's warranty.
Suitable For
- COB LED strip lighting
- SMD LED strip lighting
- Indoor LED strip
- Outdoor LED strip
- IP20 to IP68 LED strip lighting
- Kitchen and under-cabinet lighting
- Architectural lighting
- Outdoor lighting
- Signage and display lighting
- Aluminium profile LED strip installations
- Residential and commercial lighting projects
- Longer LED strip lighting runs
- Higher-output LED strip installations
Available Models
MEAN WELL XLG-150-12-AUP
-
Output Voltage: 12V DC
-
Rated Output Current: 12.5A
-
Rated Output Power: 150W
-
Recommended Maximum LED Load: 120W
MEAN WELL XLG-150-24-AUP
-
Output Voltage: 24V DC
-
Rated Output Current: 6.25A
-
Rated Output Power: 150W
-
Recommended Maximum LED Load: 120W
Technical Specifications
| Brand |
MEAN WELL |
| Series |
XLG-150 |
| Input Voltage |
100–305V AC |
| Output Voltage |
12V DC or 24V DC |
| Rated Output Power |
150W |
| Recommended Maximum Load |
120W |
| Output Current |
12.5A @ 12V / 6.25A @ 24V |
| Dimming |
Non-dimmable |
| IP Rating |
IP67 |
| AC Input |
1.8m Australian flex and plug |
| Dimensions |
180 × 63 × 35.5mm |
| Warranty |
5 Years |
| Suitable LED Types |
SMD & COB LED Strip |
| Suitable Strip IP Ratings |
IP20–IP68 |
Why We Recommend a 120W Maximum Load
Although the driver is rated up to 150W, we recommend limiting the connected LED strip load to approximately 120W.
Running an LED driver below its absolute maximum capacity helps reduce heat and provides additional operating headroom, particularly in larger LED strip installations or applications where the lighting operates for extended periods.
As a general guide, a 120W maximum load can power approximately:
- 12 metres of 10W/m LED strip
- 10 metres of 12W/m LED strip
- 8 metres of 15W/m LED strip
- 6 metres of 20W/m LED strip
- 4.8 metres of 25W/m LED strip
Important: Choose the 12V model for 12V LED strip and the 24V model for 24V LED strip. Never connect a 12V LED strip to a 24V driver or vice versa.
