MEAN WELL XLG Series IP67 LED Driver – 100W 12V / 24V
Power your LED strip lighting with a genuine MEAN WELL XLG Series LED driver, designed for reliable indoor and outdoor lighting installations.
Available in 12V and 24V versions, these nominal 100W drivers provide up to 96W rated output and are suitable for powering a wide range of SMD and COB LED strip lighting, including IP20, IP54, IP65, IP67 and IP68 LED strip.

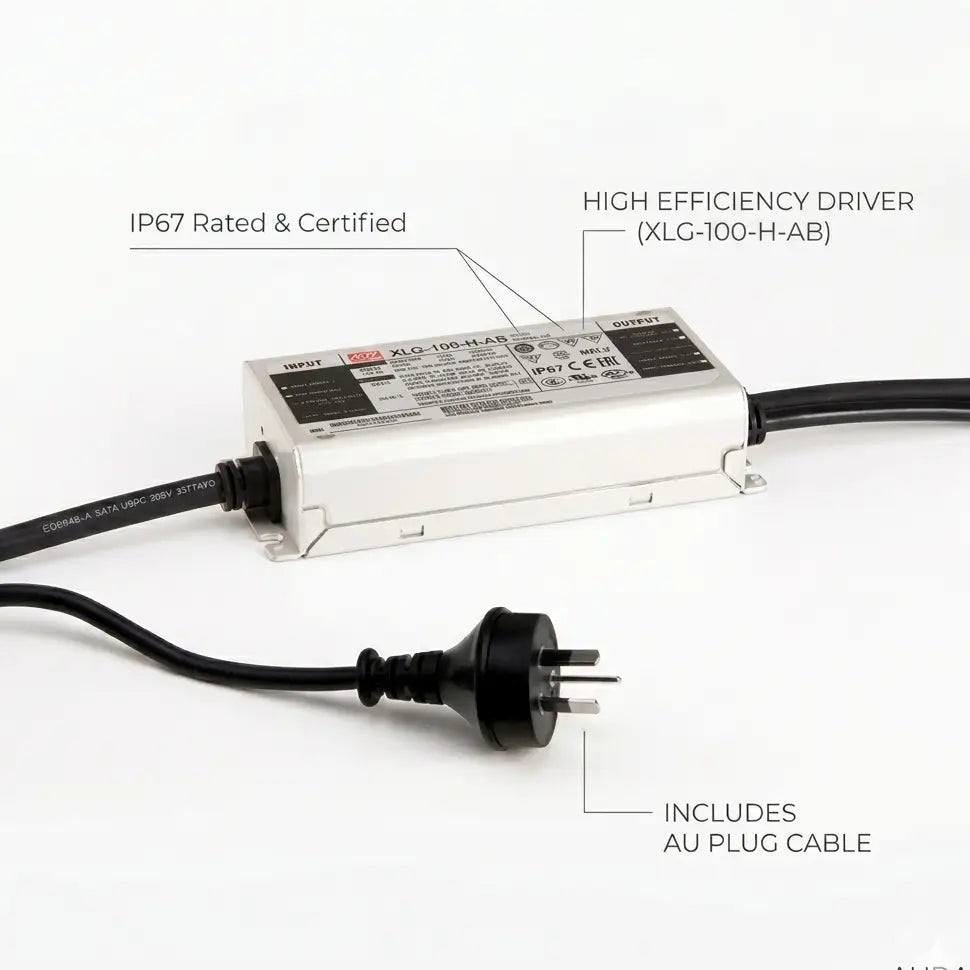

The driver itself is IP67 rated, providing excellent protection against dust and moisture. This makes it suitable for installations in kitchens, bathrooms, outdoor areas, signage, cabinetry, architectural lighting and other locations where a rugged weather-resistant power supply is required.

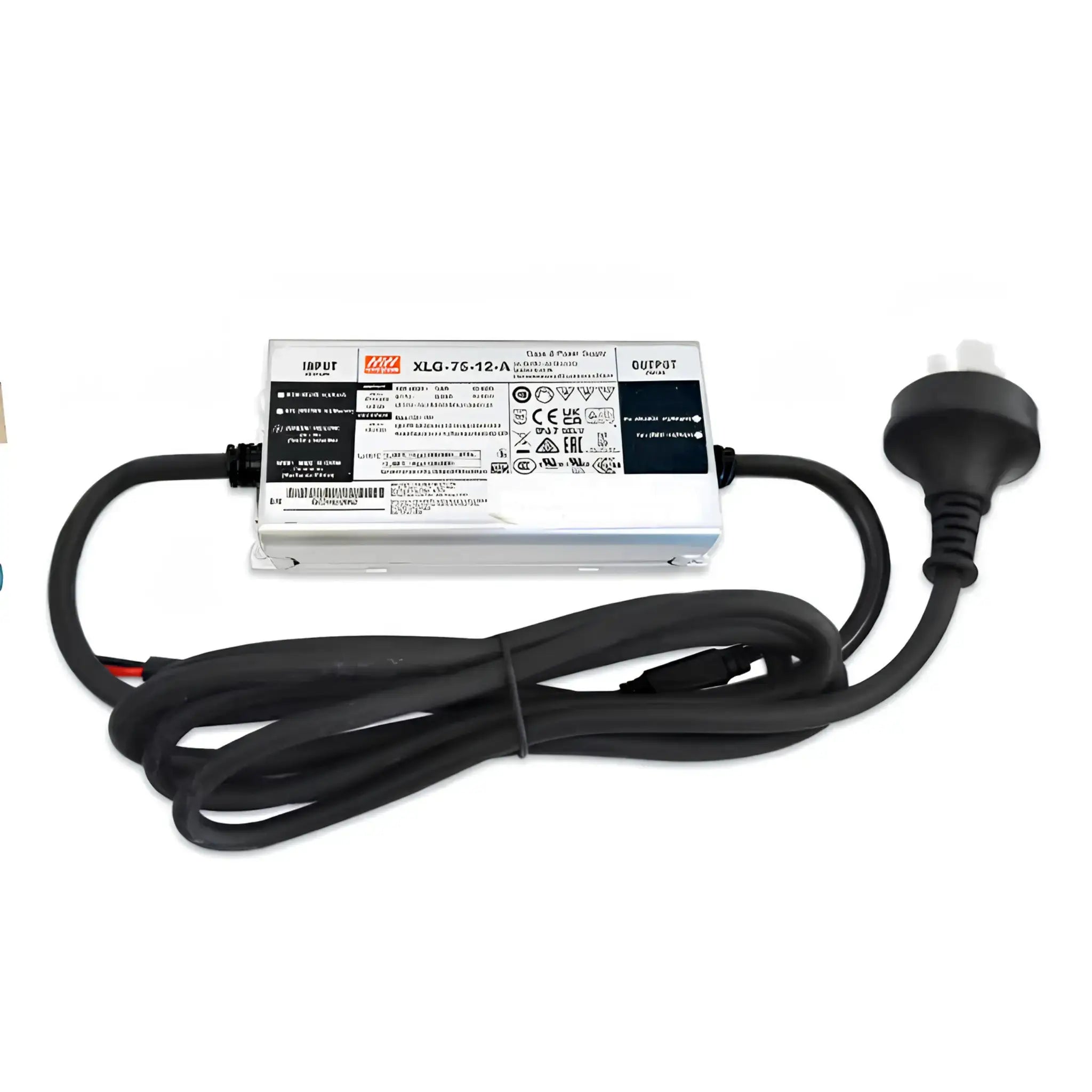

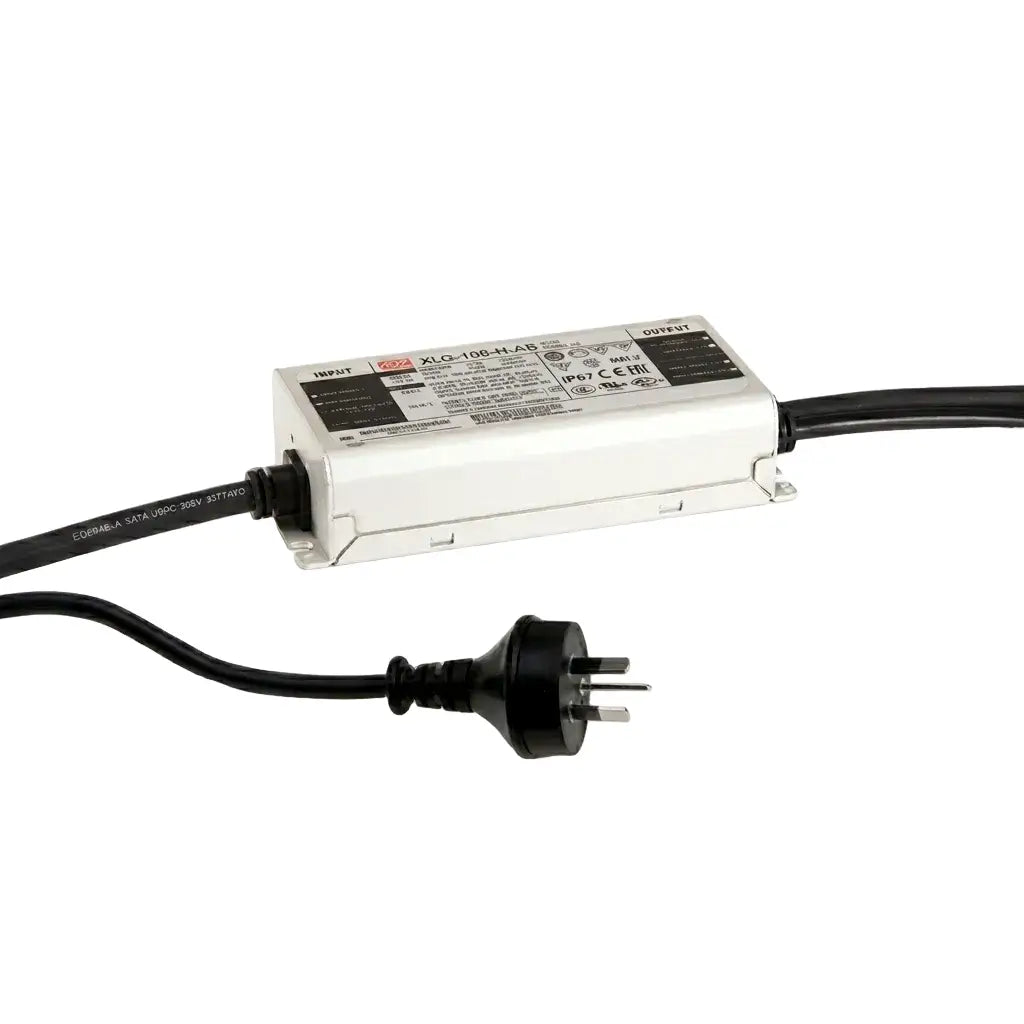

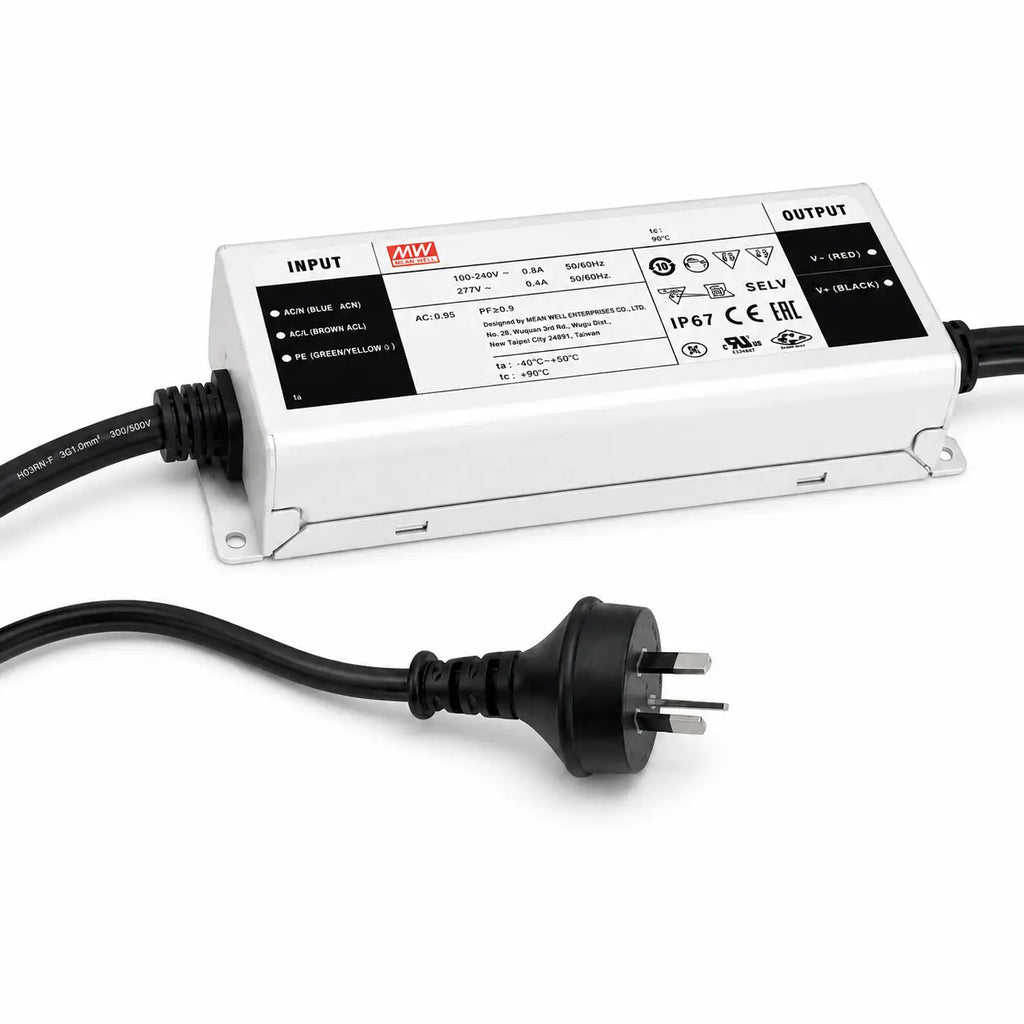

For easy installation, our Australian versions come with a factory-fitted 1.8 metre Australian flex and plug, allowing the driver to be connected directly to a standard Australian power outlet.
For reliable operation and longer service life, we recommend a maximum connected LED load of 80W.
Genuine MEAN WELL Power Supply

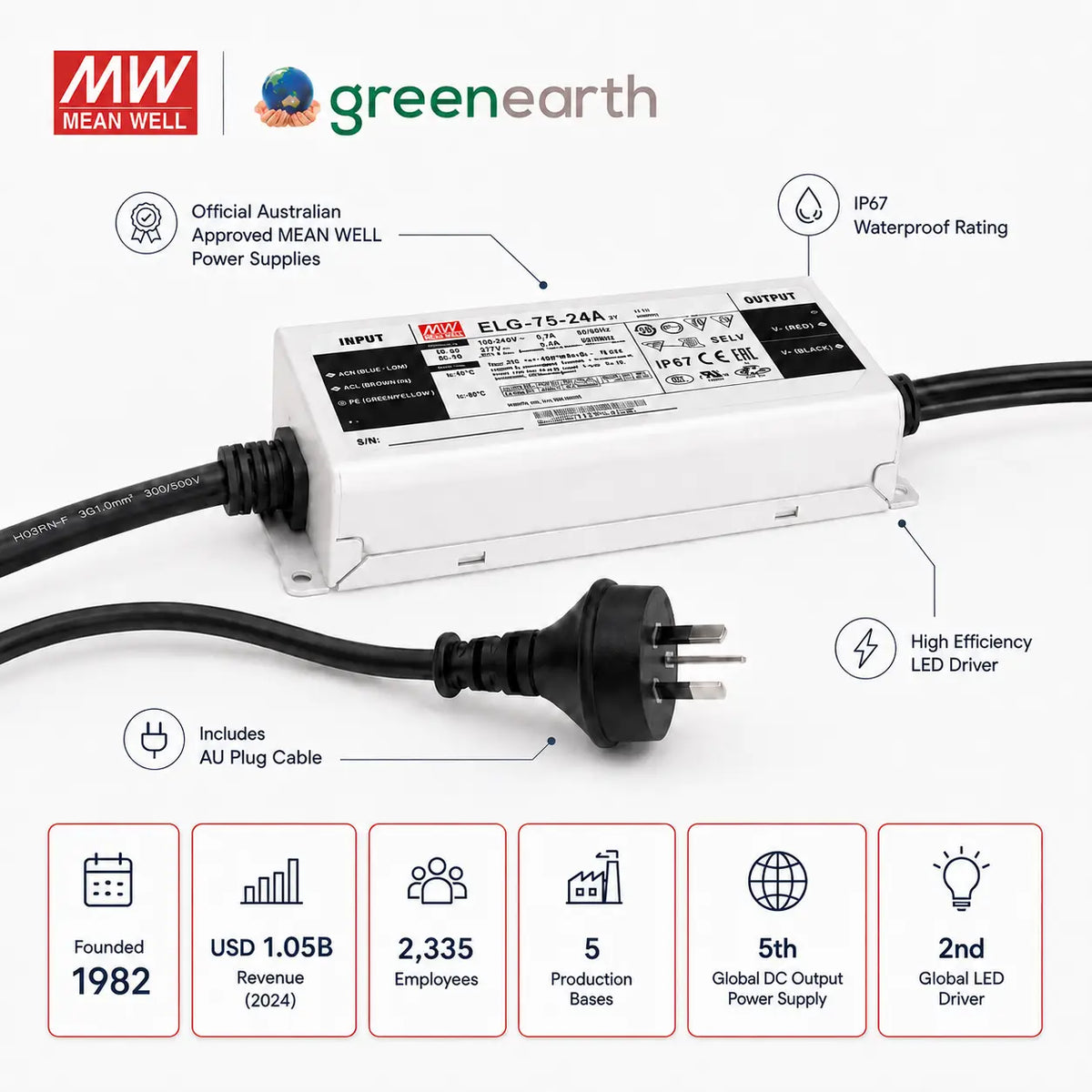

We supply genuine MEAN WELL XLG Series drivers approved for the Australian market.
MEAN WELL is one of the world's leading manufacturers of LED drivers and power supplies, widely used in residential, commercial, architectural and professional lighting applications.
Each driver is backed by a 5-year manufacturer's warranty.
Suitable For
- COB LED strip lighting
- SMD LED strip lighting
- Indoor LED strip
- Outdoor LED strip
- IP20 to IP68 LED strip lighting
- Kitchen and under-cabinet lighting
- Architectural lighting
- Outdoor lighting
- Signage and display lighting
- Aluminium profile LED strip installations
- Residential and commercial lighting projects
- Longer LED strip lighting runs
Available Models
MEAN WELL XLG-100-12-AUP
-
Output Voltage: 12V DC
-
Rated Output Current: 8A
-
Rated Output Power: 96W
-
Recommended Maximum LED Load: 80W
MEAN WELL XLG-100-24-AUP
-
Output Voltage: 24V DC
-
Rated Output Current: 4A
-
Rated Output Power: 96W
-
Recommended Maximum LED Load: 80W
Technical Specifications
| Brand |
MEAN WELL |
| Series |
XLG-100 |
| Input Voltage |
100–305V AC |
| Output Voltage |
12V DC or 24V DC |
| Rated Output Power |
96W |
| Recommended Maximum Load |
80W |
| Output Current |
8A @ 12V / 4A @ 24V |
| Dimming |
Non-dimmable |
| IP Rating |
IP67 |
| AC Input |
1.8m Australian flex and plug |
| Dimensions |

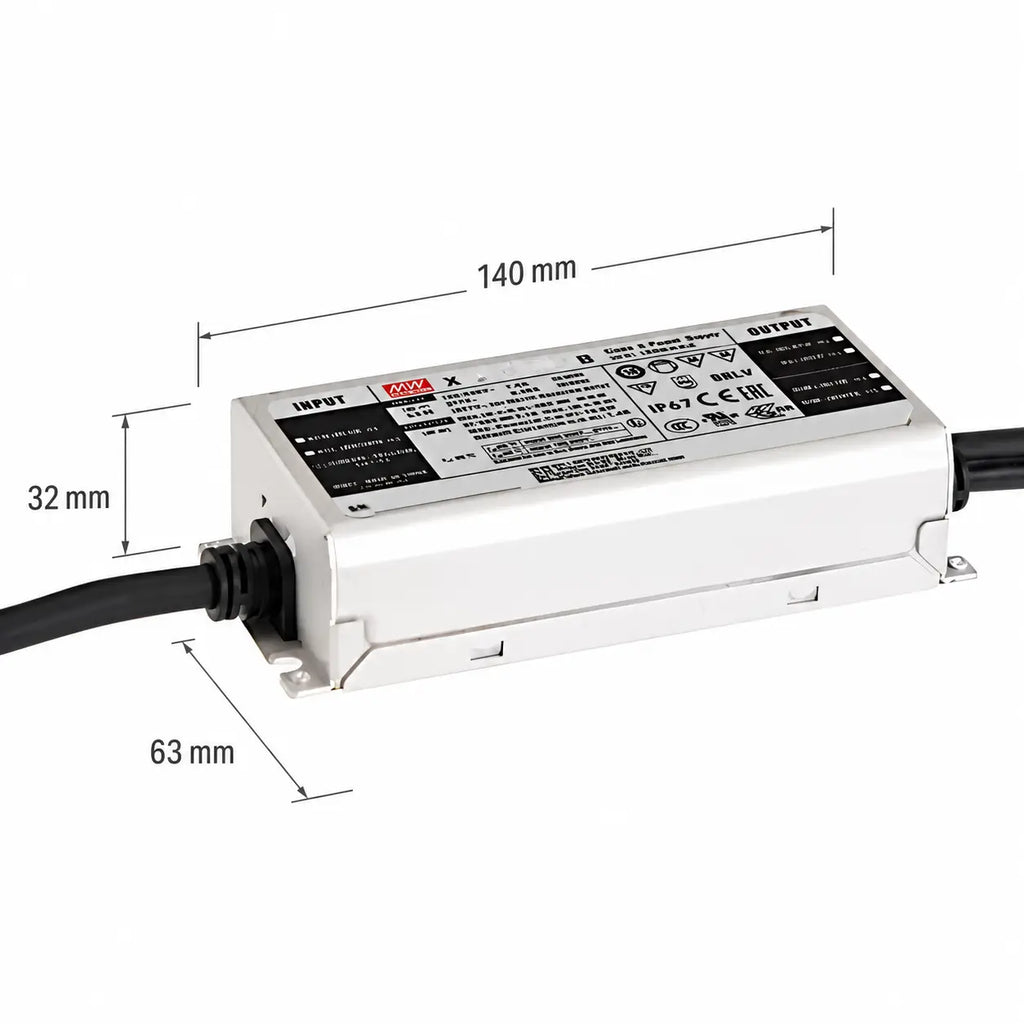

140 × 63 × 32mm |
| Warranty |
5 Years |
| Suitable LED Types |
SMD & COB LED Strip |
| Suitable Strip IP Ratings |
IP20–IP68 |
Why We Recommend an 80W Maximum Load
Although the driver is rated up to 96W, we recommend limiting the connected LED strip load to approximately 80W.
Running an LED driver below its absolute maximum capacity helps reduce heat and provides additional operating headroom, particularly in longer-running LED strip installations.
As a general guide, an 80W maximum load can power approximately:
- 8 metres of 10W/m LED strip
- 6.5 metres of 12W/m LED strip
- 5 metres of 15W/m LED strip
- 4 metres of 20W/m LED strip
Important: Choose the 12V model for 12V LED strip and the 24V model for 24V LED strip. Never connect a 12V LED strip to a 24V driver or vice versa.
