IXL Tastic Luminate Single 3 in 1 has been recognised as an ABA100 Winner for Product Innovation and Product Excellence in The Australian Brand Awards 2019.
- Powerful Extraction: 480m3/h Airflow
- Long Lasting Instant Heat: 1 x 800W Infra-Red Heat Lamp, auto cut off timer
- Dimmable & Switchable 25W LED (Warm white/Cool white)
- Plug & Play wall switch for easy installation
- Included 6 metres duct and exterior outlet vent
Tastic Luminate is compliant with NCC in Australia, and G4 Building Codes and Healthy Home Standard for bathrooms and kitchens in New Zealand.

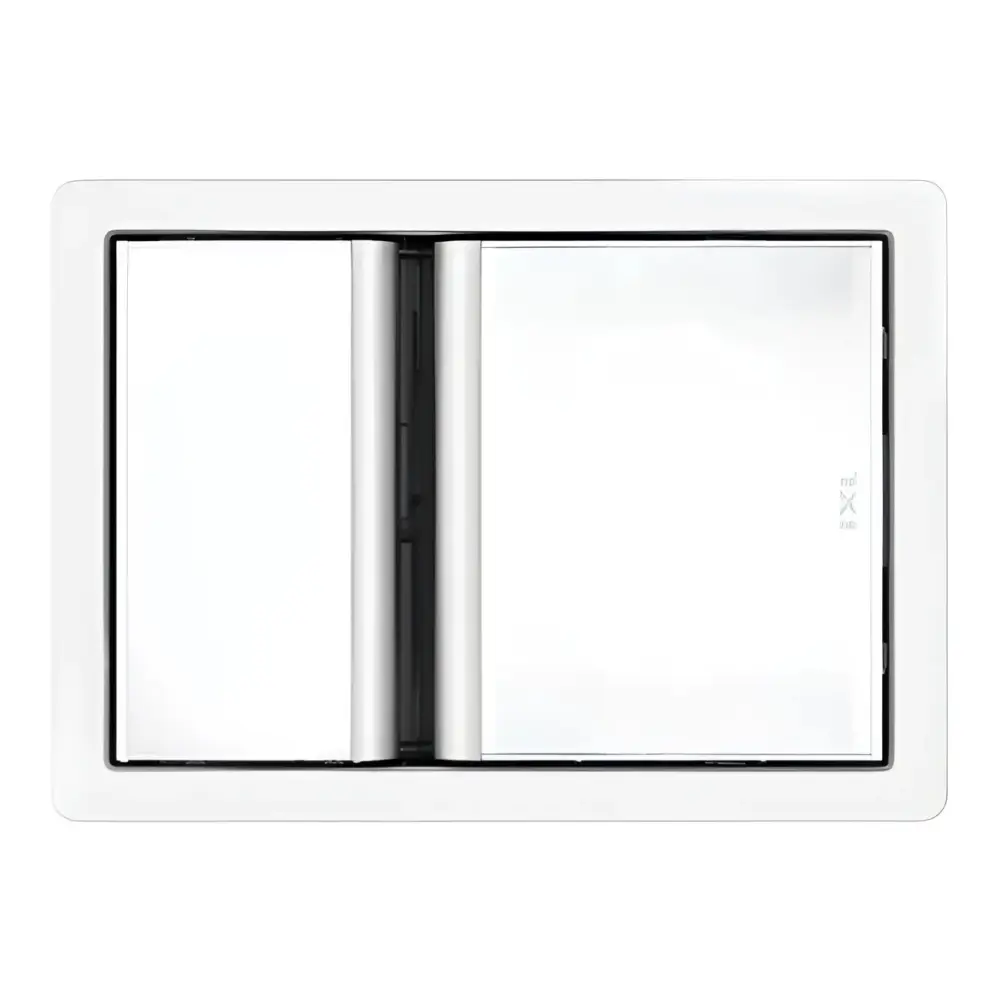

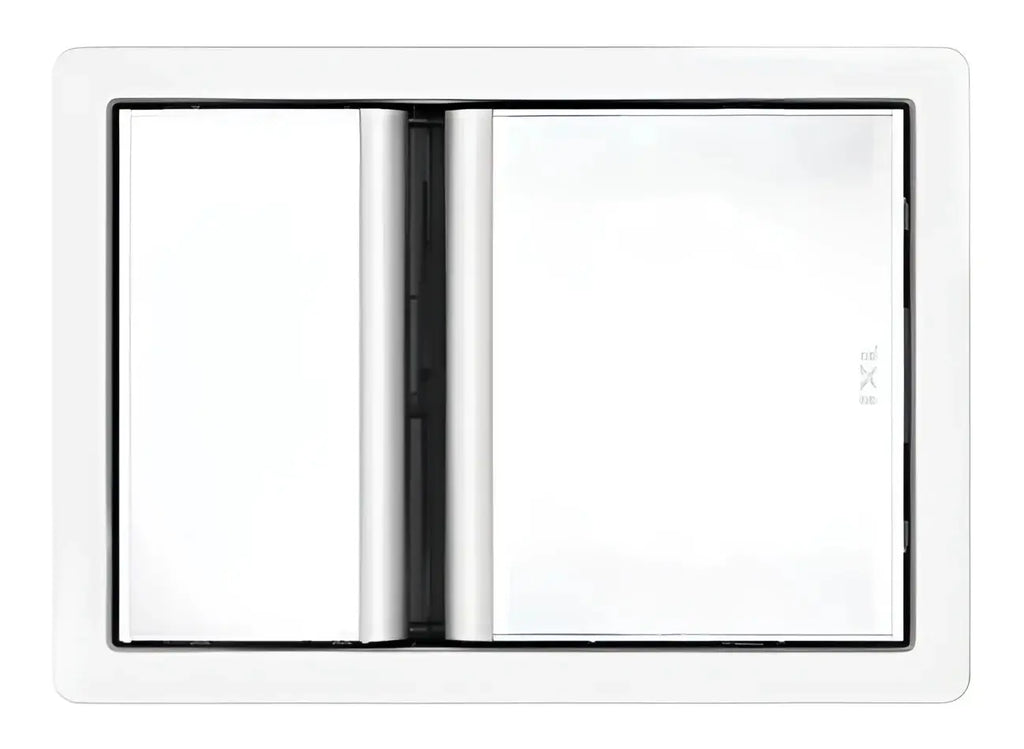

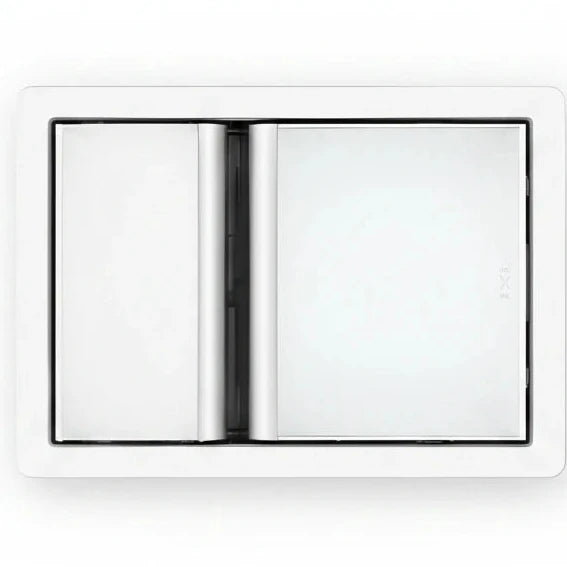

Tastic Luminate Single Bathroom Ceiling Heater is proudly designed and manufactured in Australia.
-
Airflow Extraction (m3/h)
480
-
Heat Lamps
800W
-
Ducted
Yes
-
Minimum Ceiling Height
2.2
-
Clearance Required above Unit (mm)
30
-
Colour Temperature (Kelvins)
3000/4000
-
Current Ratings (Amps)
3.6
-
Cutout Size (mm)
462 x 332
-
Exhaust Capacity (l/s)
133
-
Exhaust Capacity (m3/h)
480
-
Fan Size (mm)
170
-
Fascia Dimensions (mm)
482.75W x 367D
-
Half Heat Function
Yes
-
Instant Heat
Yes
-
Inline Fan Ducted to Outside
Yes
-
LED Light Output (Lumens)
1800
-
Made in Australia
Yes
-
Max. Height of Unit (mm)
195
-
Max. Ceiling Height (m)
2.7
-
Min. Ceiling Height (m)
2.2
-
Supply (Volts)
240
-
Area Suitability in Room without Shower
60
-
Area Suitability in Room with Shower
24
-
Total Ceiling Cavity Required (mm)
245
-
Watts (Fan in Brackets)
875 (75)
-
Weight of Unit (kg)
7
-
Watts (W)
800
-
Centre LED Voltage (W)
25
-
Wall Switch
Yes
-
Power Cable Length (m)
1.2
-
Unit Dimensions (mm)
367W x 483L x 207D
-
Dimmable LED Light (Warm White/Cool White/Daylight)
Yes
