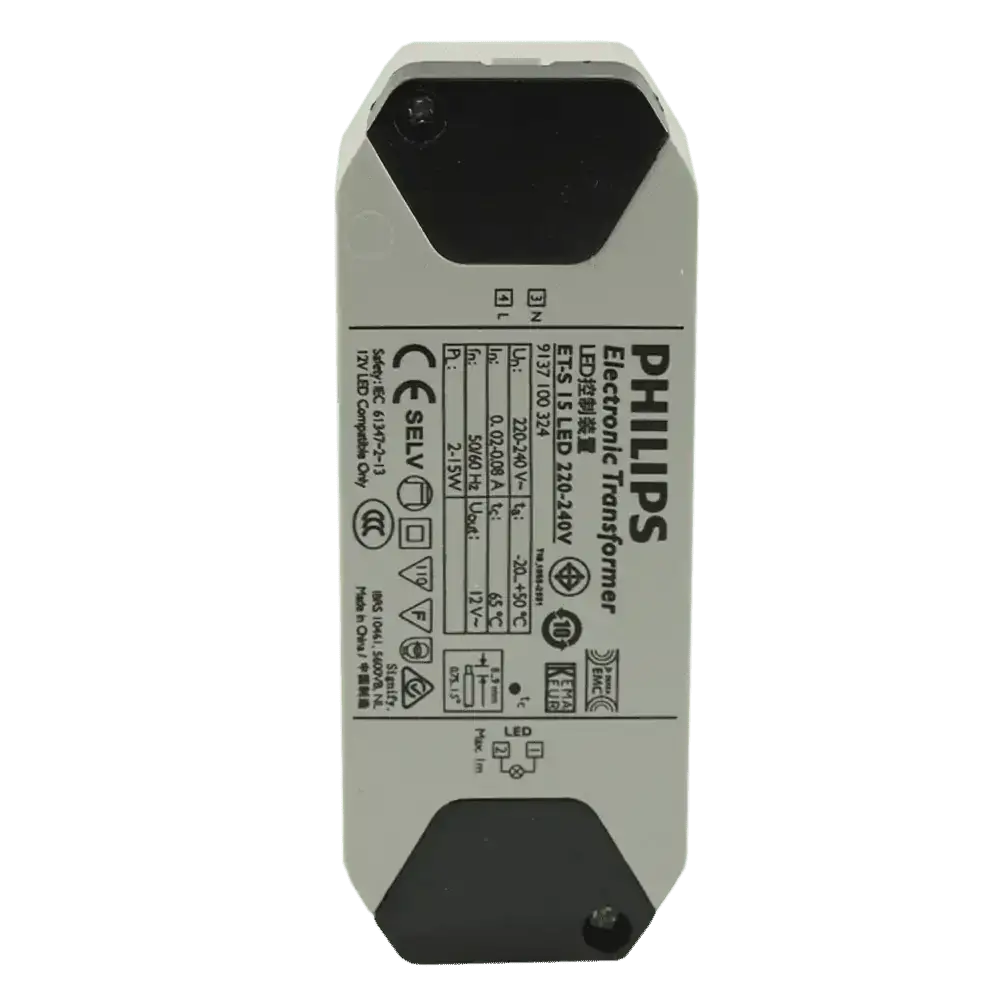

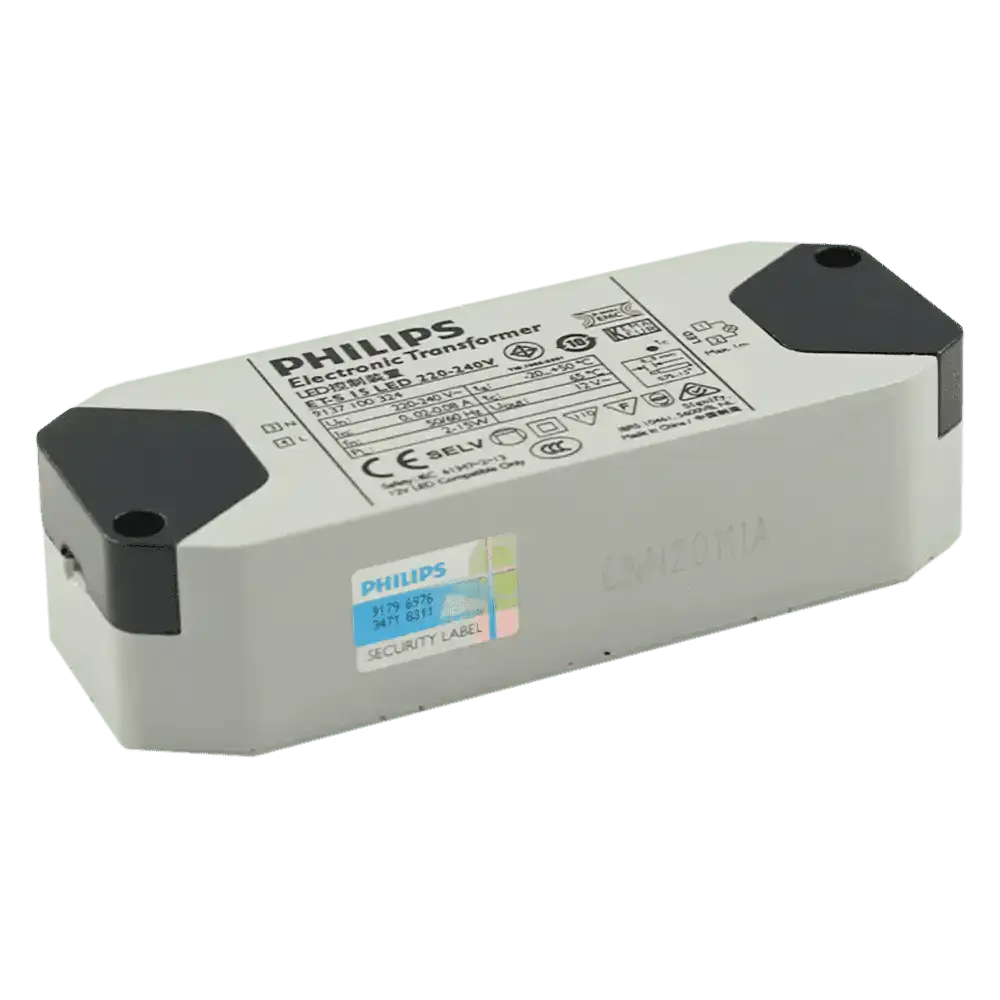

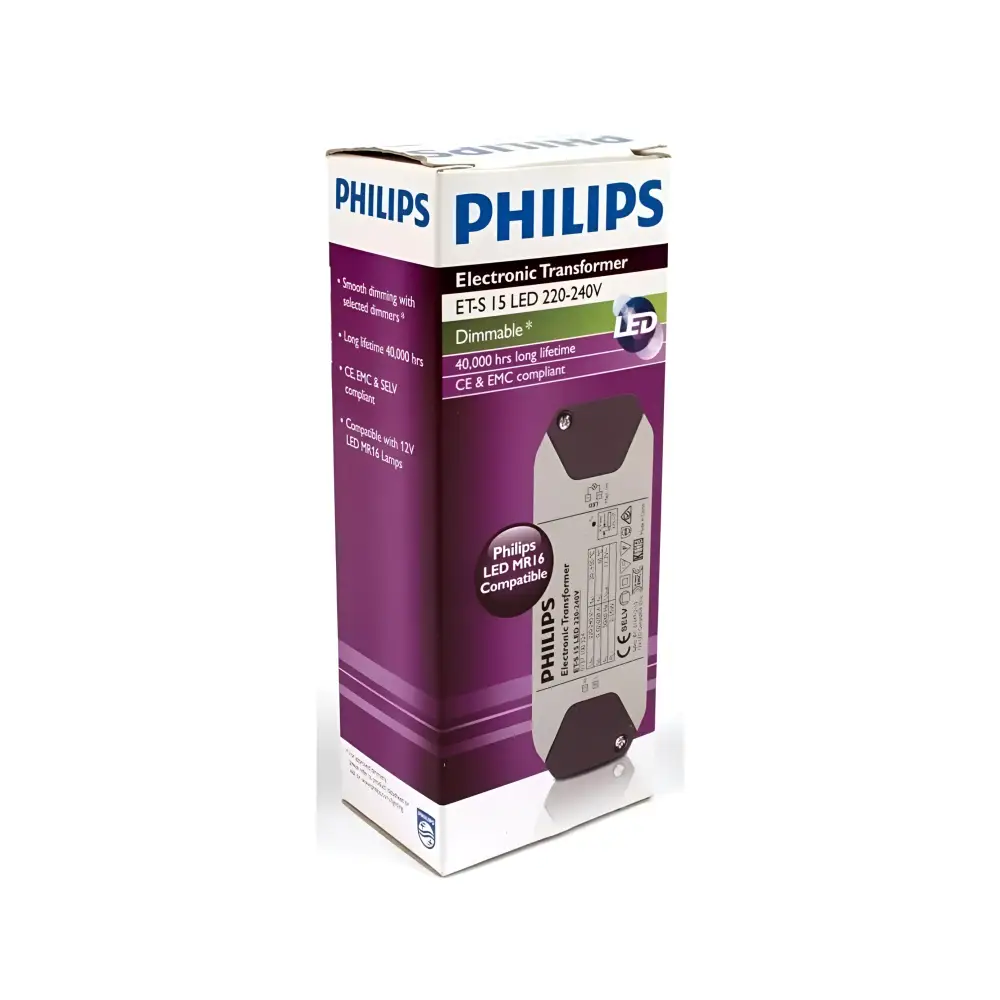

The Philips Electronic Transformer ET-S 15 LED 220-240V is a High-Frequency electronic transformer for operation with 12V halogen and LED lamps. Smooth dimming with selected dimmers and long life of up to 40,000 hrs.
General Information:
- Number of products on MCB (16 A type B)(nom.): 90
- Automatic Restart: Yes
Operating and Electrical:
- Input Voltage: 220-240V
- Input Frequency: 50 to 60 Hz
- Power Factor 100% load (nom.): 0.98
- Mains Voltage Performance (AC): 202...254V
- Mains Voltage Safety (AC): 198...264V
- Inrush Current Width: 0.10 ms
- Power Losses (nom.): 0.99W
- Inrush Current Peak (max.) 15A
- Output Voltage: 11.3V
Wiring:
- Connector Type Input Terminals: Screw
- Colour Input Terminals: Orange
- Connector Type Output Terminals: Screw
- Cable Length from Device to Lamp: 1m
- Wire Strip Length: 8-9mm
System Characteristics:
- Rated Ballast-Lamp Power: 15W
Temperature:
- T-Ambient (max.): 50°C
- T-Ambient (min.): -20°C
- T-Case Maximum (max.): 65°C
Approval and Application:
- Approval Marks: CE Marking
