COB MINI HELLFIRE RED
BAD BEHAVIOUR IN COLOUR.
Turn Up the Heat. Unleash Hellfire.
Some lights are made to blend in. This one was born to stand out. Introducing the COB MINI Hellfire Red 5mm Dotless COB LED Strip Light – a fiery burst of vibrant red illumination designed to transform ordinary interiors into extraordinary spaces.
Forget visible LED dots and distracting hotspots. Powered by Cree COB LED technology featuring 480 chips per metre, COBRA MINI delivers a smooth, continuous ribbon of intense red light.
With an ultra-slim 5mm width, Hellfire Red fits into narrow aluminium profiles, discreet architectural details and spaces where conventional LED strips may be too wide.
Whether you're creating an atmospheric gaming room, transforming your home theatre, illuminating a home bar or adding dramatic accents to cabinetry and shelving, Hellfire Red doesn't do subtle.
Operating on 24V DC and consuming just 7 watts per metre, this flexible COB LED strip combines energy-efficient operation with impressive visual impact.
Please Note: This product is supplied as LED strip lighting only. A compatible 24V constant-voltage LED driver is required and sold separately.
Key Features
-
Seamless Dotless Illumination: High-density COB technology produces a smooth, continuous red glow without visible LED hotspots.
-
Hellfire Red: Bold, vibrant red illumination designed to create dramatic lighting effects and striking architectural features.
-
Ultra-Slim 5mm Design: Perfect for narrow aluminium profiles, compact spaces and discreet lighting installations.
-
Cree COB LED Technology: 480 LED chips per metre provide high-density, uniform illumination.
-
24V Low-Voltage Operation: Designed for use with a compatible 24V DC constant-voltage LED driver.
-
7W/m Energy Efficient: Low power consumption for decorative and architectural lighting applications.
-
Flexible Construction: Suitable for gentle curves and creative lighting installations.
-
Self-Adhesive Backing: Integrated double-sided adhesive backing allows installation onto suitable clean, dry surfaces.
-
50mm Cutting Intervals: Convenient cutting points allow the strip to be customised to suit your installation.
-
Dimmable: Supports dimming when used with a suitable compatible dimming system and LED driver.
-
IP20 Indoor Rated: Designed for dry interior environments.
-
3-Year Warranty: Backed by Green Earth Lighting.
Perfect For
- Gaming rooms and PC gaming setups
- Home theatres and entertainment rooms
- TV units and media walls
- Home bars and entertainment areas
- Under-cabinet lighting
- Shelving and display cabinets
- Retail displays and commercial fit-outs
- Architectural feature lighting
- Decorative accent and mood lighting
- Custom aluminium LED profile installations
Technical Specifications
| Product Range |
COB MINI |
| Colour Name |
Hellfire Red |
| Light Colour |
Red |
| LED Technology |
COB (Chip on Board) |
| LED Chip Brand |
Cree |
| LED Density |
480 chips per metre |
| Operating Voltage |
24V DC |
| Power Consumption |
7W per metre |
| Light Output |
400 lumens per metre |
| Colour Rendering |
CRI 90+ |

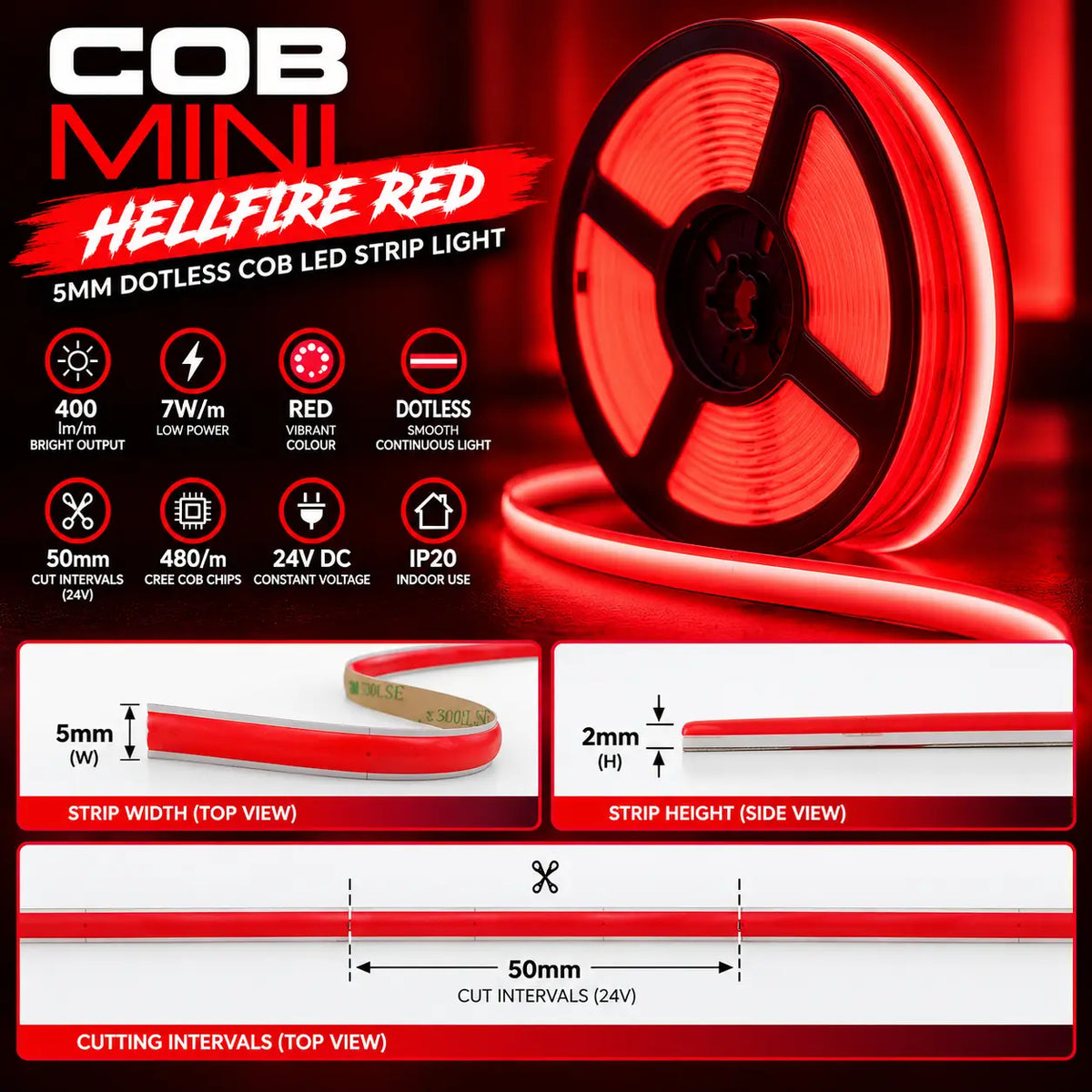

| Strip Width |
5mm |
| Strip Height |
2mm |
| Cutting Intervals |
50mm |
| IP Rating |
IP20 – Indoor Use |
| Mounting |
Self-Adhesive Backing |
| Dimmable |
Yes – With Compatible Dimming Equipment |
| Driver Type |
24V DC Constant Voltage |
| LED Driver Included |
No – Sold Separately |
| Warranty |
3 Years |
| Product Series SKU |
IP205MMRED |
LED Driver Requirements
The COB MINI Hellfire Red LED strip operates on 24V DC and requires a compatible constant-voltage LED driver.
Power consumption is approximately 7 watts per metre. Select a driver with sufficient capacity for the total connected strip length.
| Strip Length |
LED Strip Power |
Suggested Driver Capacity |
| 2 Metres |
14W |
20W or Higher |
| 3 Metres |
21W |
30W or Higher |
| 4 Metres |
28W |
40W or Higher |
| 5 Metres |
35W |
45W or Higher |
Important: LED drivers are sold separately. Ensure the selected driver is suitable for the installation environment and intended dimming requirements.
Installation Information
The COB MINI Hellfire Red LED strip features a flexible 5mm-wide PCB with integrated double-sided adhesive backing for convenient installation.
Install onto a suitable clean, dry surface. For improved heat dissipation and a professional finish, installation within a compatible aluminium LED profile is recommended.
The LED strip can be cut at the clearly marked 50mm cutting intervals. Always disconnect the power supply before cutting or making electrical connections.
Indoor Use Only: The IP20 rating makes this strip suitable for dry indoor environments. It is not designed for outdoor installations or direct exposure to moisture.
Looking for a Complete Plug & Play Kit?
Want the same striking Hellfire Red lighting without purchasing a separate LED driver?
Discover the COBRA MINI Hellfire Red Dotless LED Strip Light Kit, available in 2m, 3m, 4m and 5m lengths with a Philips branded LED driver included.
BAD BEHAVIOUR IN COLOUR.
COB MINI HELLFIRE RED
Turn Up the Heat. Unleash Hellfire.
Forget ordinary lighting. Ignite your space with the unmistakable attitude of Hellfire Red.
