The 45W Constant Voltage LED Driver is a high-quality and reliable power supply designed for indoor and outdoor LED lighting applications. Available in 12V DC or 24V DC versions, it is ideal for LED strip lighting, architectural lighting, signage, retrofit installations and general low-voltage lighting requirements.
Compact and versatile, the driver features a toughened IP67-rated housing suitable for demanding environments. Captive terminal screws on both the primary and secondary connections provide secure and convenient wiring, while the supplied Australian AS/NZS flex and plug allows for quick connection to a standard mains power outlet.
With a rated output of 45W and a recommended maximum connected load of 40W, the driver provides operating headroom to support reliable performance and service life. It is designed for constant-voltage LED applications where dimming is not required.
Safe & Reliable LED Power Supply
The driver is SELV and EMC compliant and includes built-in protection against overload and short circuits. Safe no-load operation provides additional protection during installation, servicing and maintenance.
- 45W constant voltage LED driver
- Available in 12V DC or 24V DC
- Recommended maximum load: 40W
-
IP67 rated for indoor and outdoor applications
- Supplied with Australian AS/NZS flex and plug
- Captive terminal screws for secure primary and secondary connections
- Suitable for LED strip lighting and other constant-voltage LED products
- Safe no-load operation
- Overload and short-circuit protection
- SELV and EMC compliant
- Non-dimmable
- 3-year replacement warranty
Ideal For
- LED strip lighting installations
- Residential and commercial lighting
- Indoor and outdoor LED applications
- Architectural and feature lighting
- Signage and display lighting
- Retrofit and maintenance applications
Specifications
| Driver Type |
Constant Voltage LED Driver |
| Output Voltage |
12V DC or 24V DC |
| Maximum Output Power |
45W |
| Recommended Maximum Load |
40W |
| Dimmable |
No |
| Dimming Type |
N/A |
| IP Rating |
IP67 |
| Input Connection |
Australian AS/NZS Flex & Plug |
| Protection |
Overload & Short-Circuit Protection |
| Compliance |
SELV & EMC Compliant |
| Dimensions |

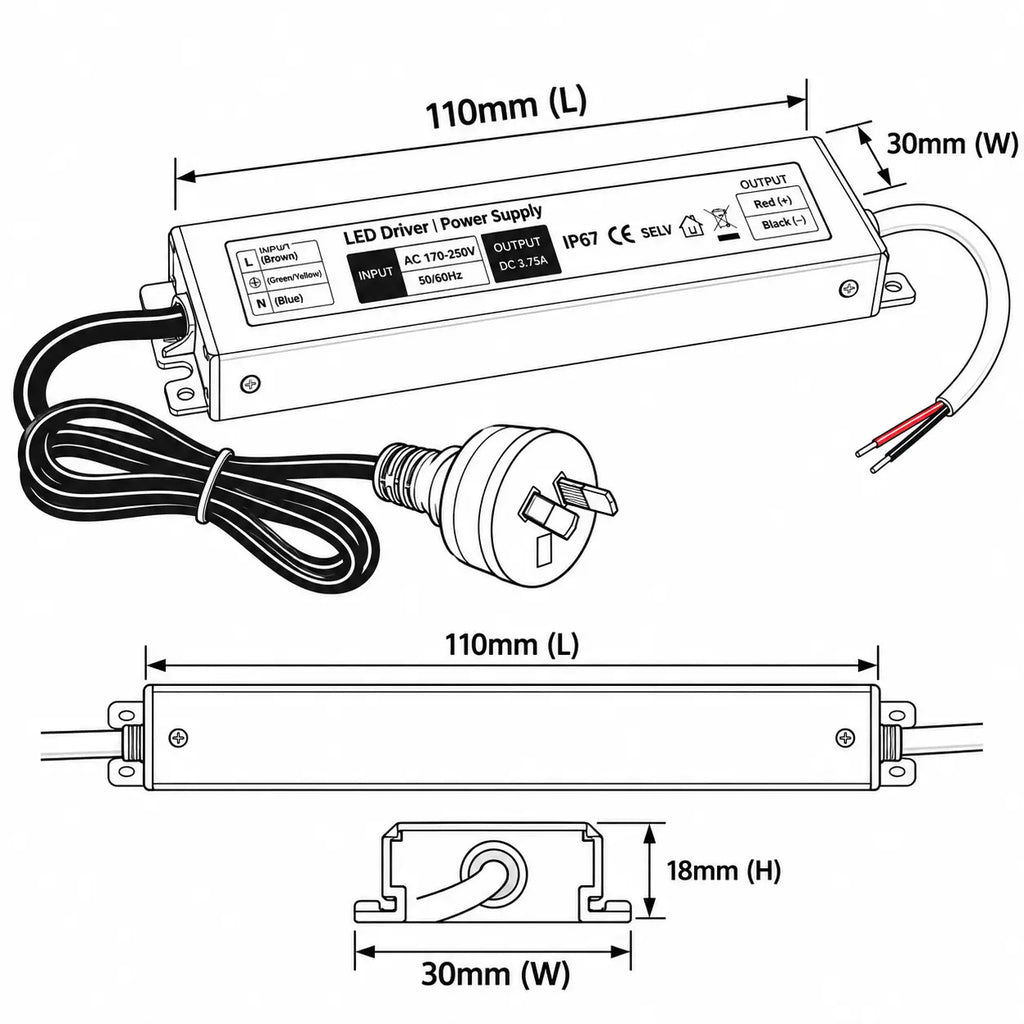

110mm (L) × 30mm (W) × 18mm (H) |
| Warranty |
3 Years |
Installation note: For optimum reliability and service life, we recommend keeping the connected LED load at or below 40W.
