The 30W Constant Voltage LED Driver is a compact and reliable power supply designed for 12V DC or 24V DC LED lighting applications. Suitable for indoor and outdoor installations, it is ideal for LED strip lighting, display lighting, signage, cabinet lighting and general low-voltage lighting systems.
Built into a durable metal IP67-rated enclosure, the driver offers protection against dust and moisture while maintaining a slim, easy-to-install profile. It is supplied with an Australian flex and plug for convenient mains connection, together with a dedicated DC output cable for straightforward connection to compatible LED lighting.
The 24V version provides a maximum output of DC24V / 1.25A, while the 12V version is designed for compatible 12V constant-voltage LED loads. The driver accepts a mains input of AC170–265V, 50/60Hz and operates as a non-dimmable power supply.
Reliable Constant Voltage LED Power Supply
- 30W constant voltage LED driver
- Available in 12V DC or 24V DC
- 24V output: 1.25A maximum
- AC170–265V, 50/60Hz input
- Durable metal enclosure
-
IP67 rated for dust and water resistance
- Supplied with Australian flex and plug
- Includes 1 set of DC output cables
- Compact slimline design
- Non-dimmable operation
-
SAA approved for Australian electrical safety compliance
Ideal For
- LED strip lighting
- Under-cabinet and joinery lighting
- Display and feature lighting
- Signage applications
- Indoor and outdoor low-voltage lighting
- Retrofit and maintenance installations
Specifications
| Driver Type |
Constant Voltage LED Driver |
| Output Voltage |
12V DC or 24V DC |
| Maximum Output Power |
30W |
| 24V Output Current |
1.25A Max |
| Input Voltage |
AC170–265V |
| Input Frequency |
50/60Hz |
| Dimmable |
No |
| IP Rating |
IP67 |
| Housing |
Metal Case |
| Input Connection |
Australian Flex & Plug |
| Output Connection |
1 Set of DC Output Cables |
| Approval |
SAA Approved |

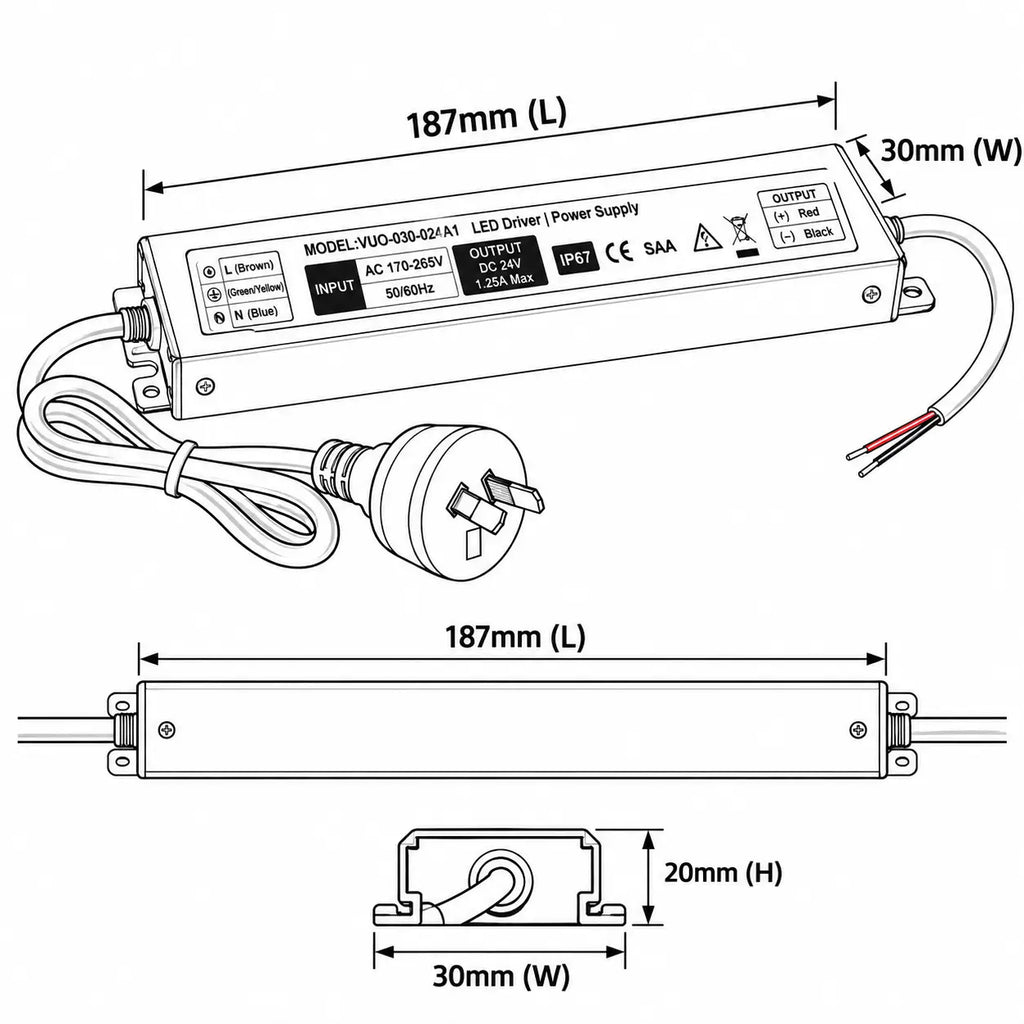

| Dimensions |
187mm (L) × 30mm (W) × 20mm (H) |
| Model |
VUO-030-024A1 |
Important: Select the correct 12V or 24V version to match the operating voltage of your LED lighting system.
