Professional COB Strip Lighting Made Simple

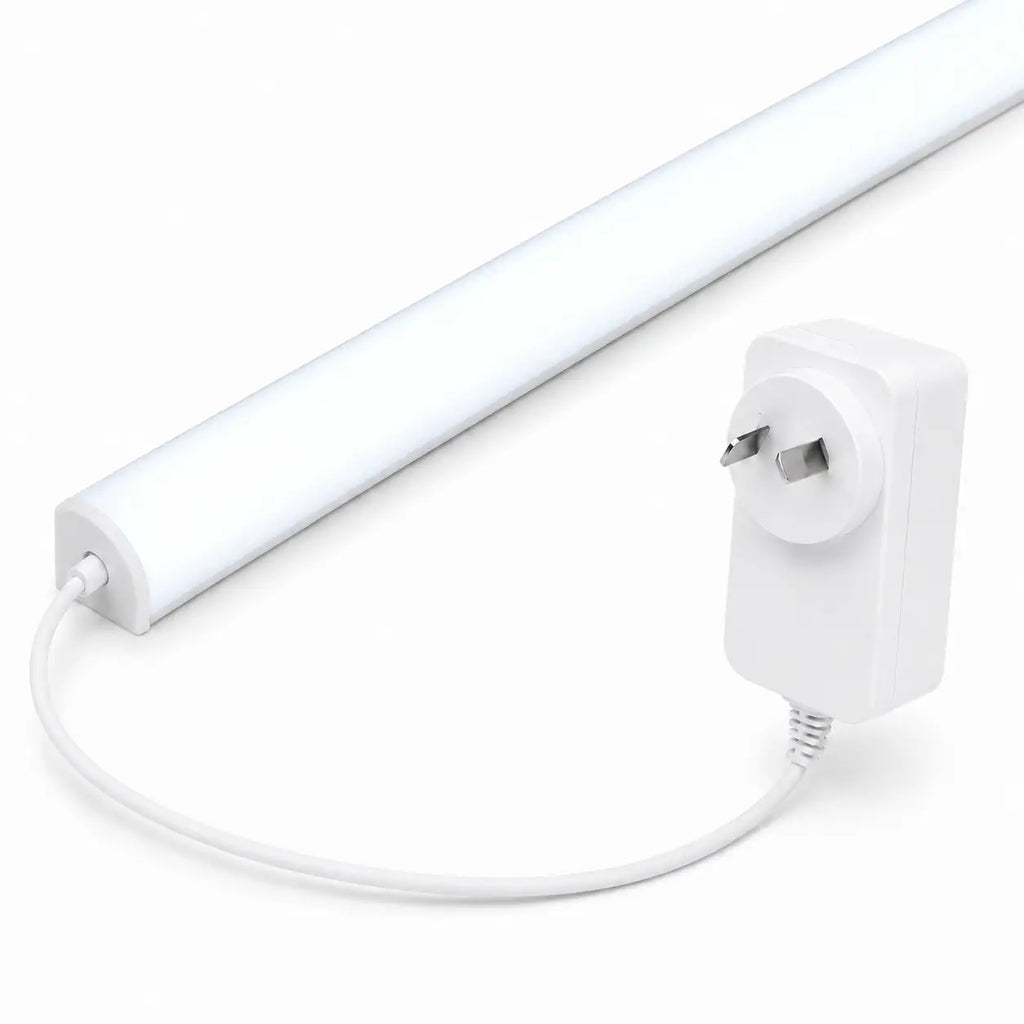

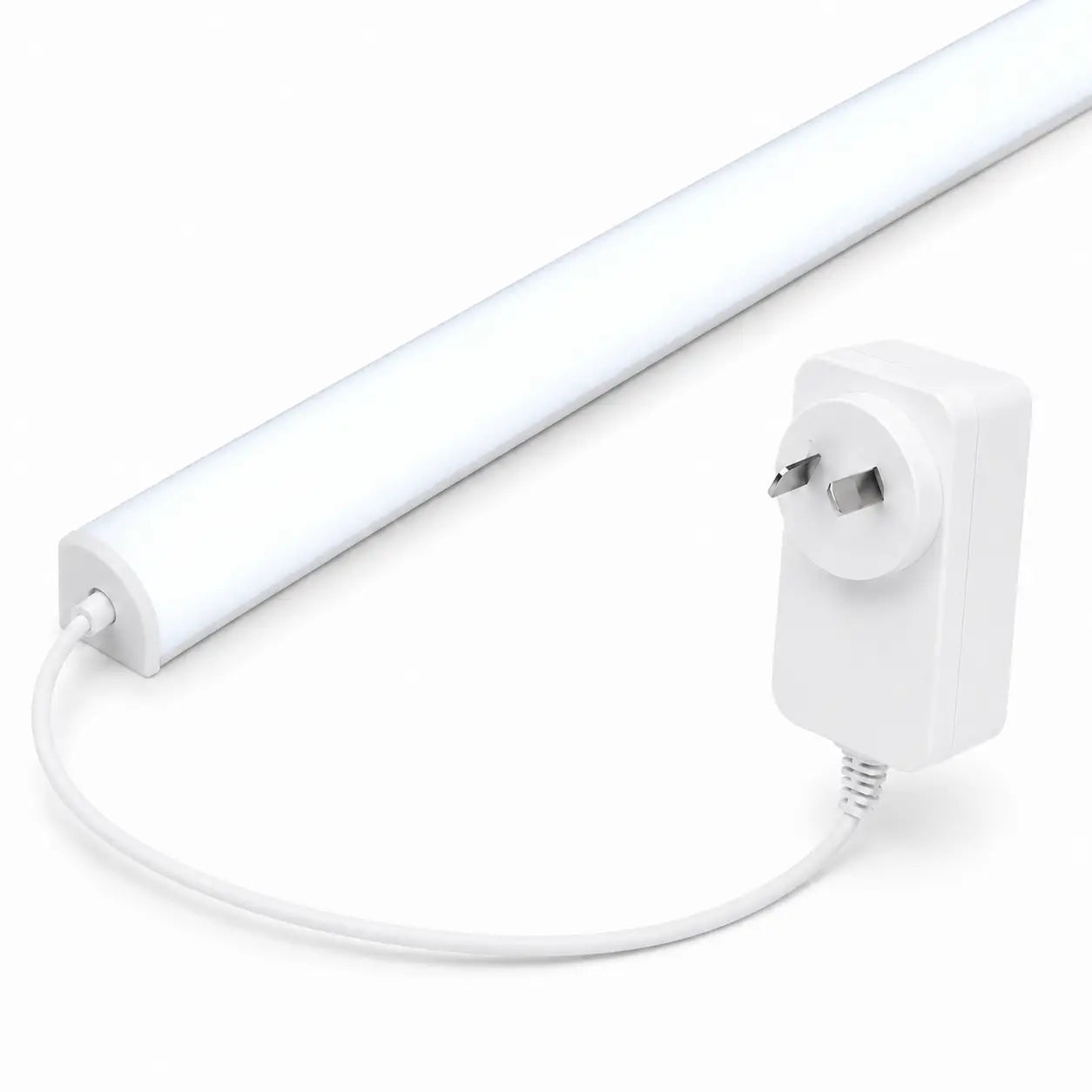

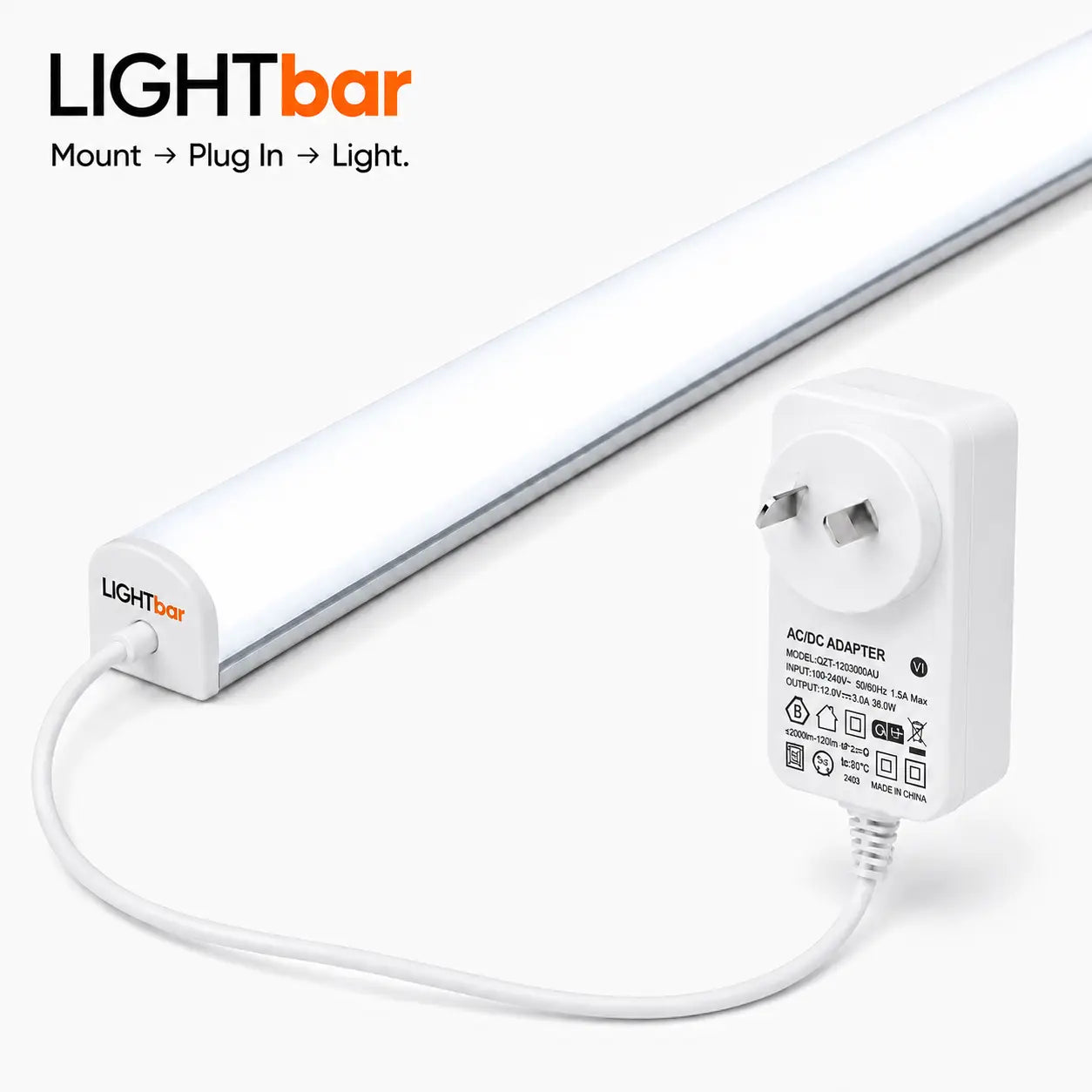

The 1m Daylight Directional Under Cabinet LED Light Bar combines a high-output COB LED strip, aluminium profile, diffuser and plug-in power supply into one complete, ready-to-use lighting system.
Designed for homeowners who want clean, modern lighting without complicated installation, it gives you the finished appearance of a professionally assembled LED strip light system with the convenience of a plug-in appliance.
Mount → Plug In → Light.
Plug & Play Under Cabinet Lighting
There is no need to separately purchase LED strip, aluminium profile, diffuser, cable, driver and connectors. Everything has been brought together into one slim 1 metre light bar.
Simply position the light where you want it, secure it using the supplied 3M VHB double-sided mounting tape, connect the 12V power supply and plug it into a standard Australian power point.
No hardwiring. No complicated assembly. No electrician required for normal plug-in installation.
Bright 1100 Lumen COB LED Light
Inside the aluminium housing is a modern 10W COB LED light source producing approximately 1100 lumens of smooth, continuous illumination.
COB LED technology places large numbers of LEDs closely together, creating an almost seamless line of light with minimal visible spotting through the diffuser.
The result is a clean, modern light output that looks significantly more refined than many conventional LED light bars or exposed strip lighting systems.
Daylight 6000K
The 6000K daylight colour temperature produces a crisp, bright white light that is ideal where visibility, clarity and a clean modern appearance are important.
Daylight lighting is particularly well suited to task-oriented areas such as kitchens, workbenches, wardrobes, home offices, workshops, utility areas and display cabinetry.
Its cooler white appearance helps surfaces and details appear clear and well illuminated, making it a practical choice for areas where you want strong, functional lighting.
Directional Light Where You Need It
The directional aluminium profile is designed to project light forwards and downwards rather than simply illuminating directly beneath the fitting.
This makes it particularly effective under kitchen cabinets, shelves and overhead cabinetry where the light can be directed towards a bench, desk, work surface or display area.
Ideal for More Than Just Kitchens
The LIGHTbar system can be used anywhere you have a suitable power point and need additional practical lighting.

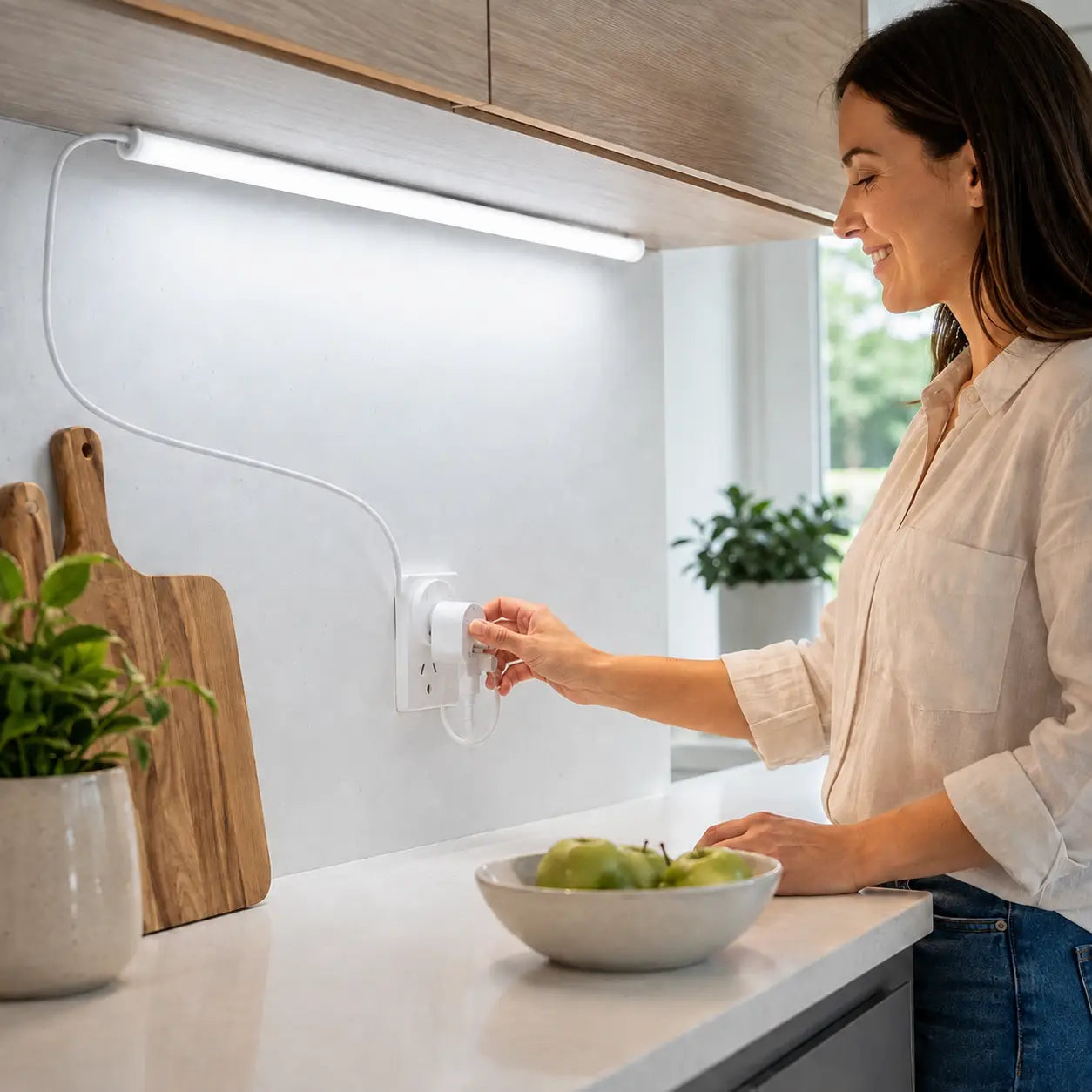

- Kitchen under cabinet lighting
- Kitchen bench and preparation areas

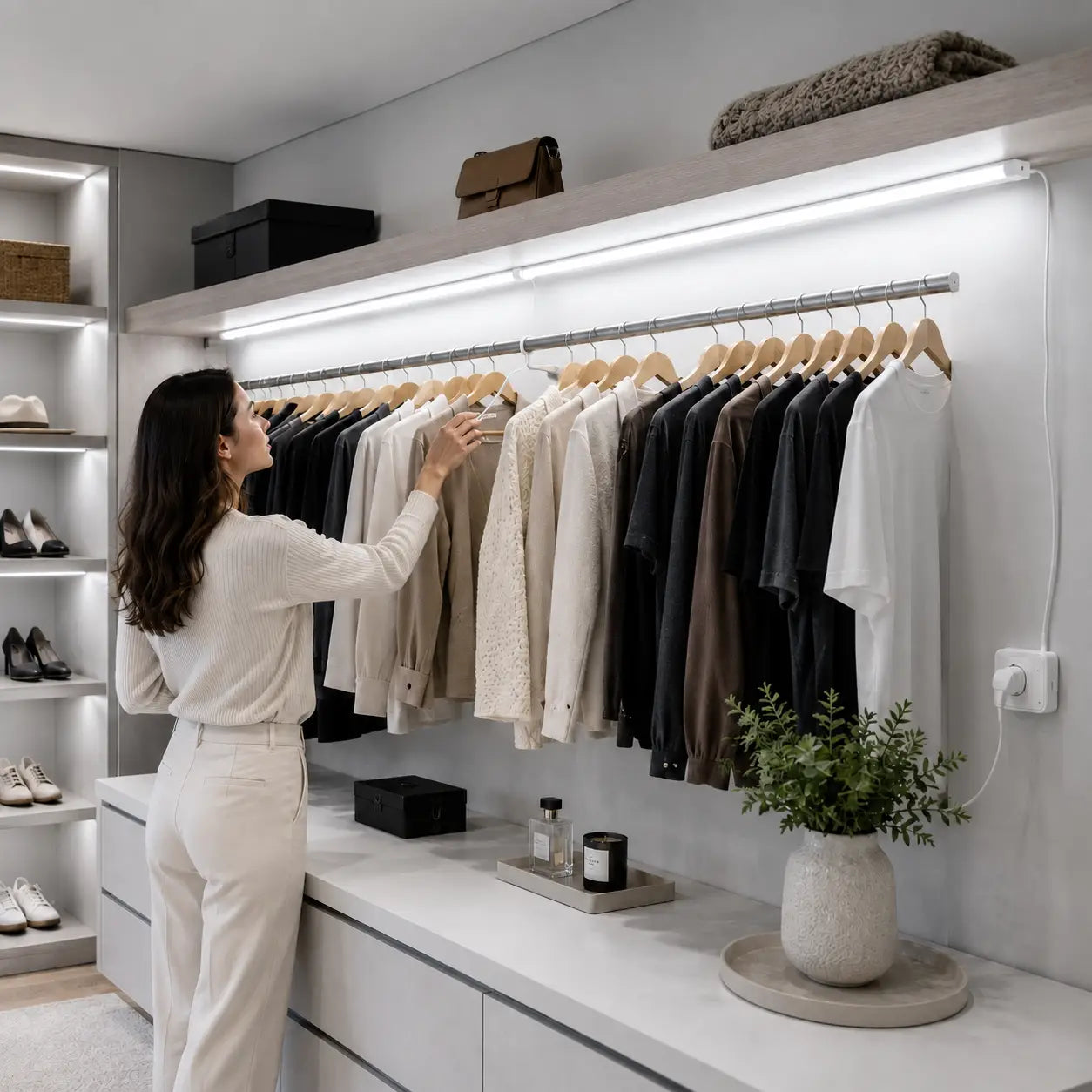

- Walk-in wardrobes and built-in robes
- Bedroom shelving and dressing areas
- Home offices and computer desks
- Living room cabinetry and display shelves
- Garage workbenches and workshops
- Storage areas and utility rooms
- Office workstations
- Retail and display cabinetry
- Tiny homes

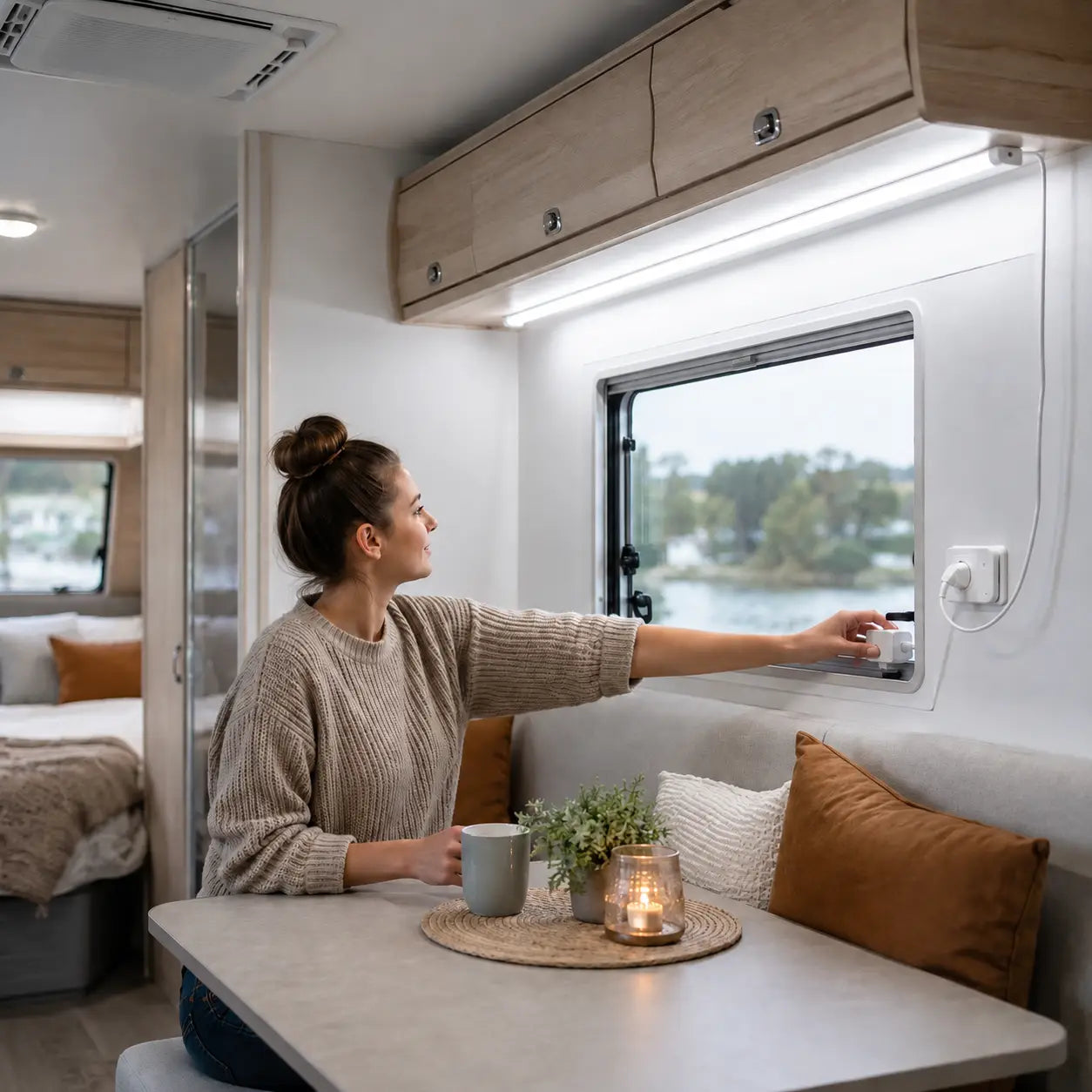

- Caravans and mobile homes with a suitable 240V power point
12V Low Voltage Light Bar
The light bar itself operates at 12V DC and is powered by the supplied plug-in 12V 2A power supply.
This creates a simple low-voltage lighting system after the power adaptor and makes adding compatible LIGHTbar accessories straightforward.
Power Two LIGHTbars from One Power Supply
The supplied 12V 2A power supply has sufficient capacity to operate up to two compatible 10W LIGHTbars.
This allows you to add a second 1 metre bar where additional coverage is required, creating up to approximately 2 metres of connected lighting from a single compatible power supply.
It is ideal for longer kitchen benches, wardrobes, shelving, offices and workshop installations.
Expandable Plug & Play System
LIGHTbar has been designed as a flexible lighting system rather than just a single fitting.
A growing range of compatible plug-and-play accessories allows you to customise how your lighting operates without rebuilding the installation.
- Power supply extension lead
- Inline on/off switch
- LED dimmer
- Hand-wave sensor
- Motion sensor
- Wi-Fi smart control module
- Remote control unit
- Additional LIGHTbar
- Replacement power supply
Start with a simple plug-in light and add switching, dimming, sensing or smart-home control later.
Easy Stick-On Installation
Installation is designed to be quick and clean using 3M VHB double-sided mounting tape.
- Choose the position of the light bar.
- Clean and dry the mounting surface.
- Remove the protective backing from the mounting tape.
- Press the LIGHTbar firmly into position.
- Connect the power supply.
- Plug into a suitable Australian power point.
Mount → Plug In → Light.
For best adhesion, apply only to clean, smooth, dry surfaces free from dust, oil and grease.
COB Strip Lighting. Simplified.
A traditional LED strip lighting installation can require separate strip light, aluminium profile, diffuser, power supply, cable, connectors and assembly.
LIGHTbar combines these components into one finished product.
Traditional system:
LED strip + aluminium profile + diffuser + cable + power supply + connectors + assembly
LIGHTbar:
Mount → Plug In → Light.
Key Features
- 1 metre directional LED light bar
- Daylight 6000K
- Modern seamless COB LED technology
- 10W power consumption
- Approximately 1100 lumens
- 12V DC low-voltage light bar
- Supplied with 12V 2A plug-in power supply
- Power supply suitable for up to 2 compatible 10W LIGHTbars
- Directional aluminium profile
- Diffused continuous light output
- Plug & play installation
- No hardwiring required
- No electrician required for normal plug-in installation
- 3M VHB double-sided mounting tape
- Expandable accessory system
- Suitable for home, office, workshop, caravan and tiny-home applications
- 1 year warranty
Technical Specifications
| Product Type |
Directional LED Light Bar |

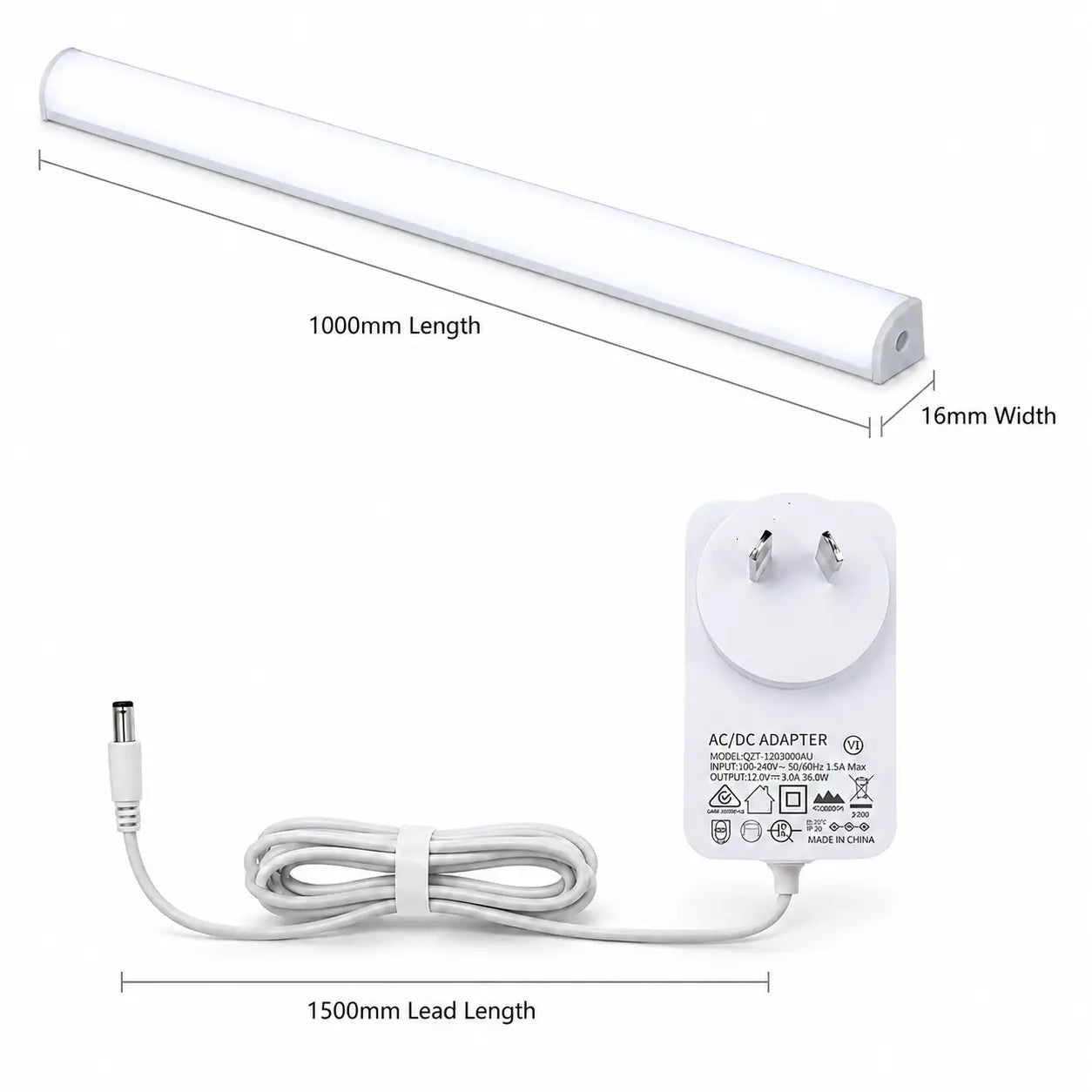

| Length |
1000mm |
| Width |
16mm |
| Light Colour |
Daylight |
| Colour Temperature |
6000K |
| LED Technology |
COB LED |
| Power |
10W |
| Light Output |
Approx. 1100 lumens |
| Operating Voltage |
12V DC |
| Power Supply |
12V DC 2A Plug-In Adaptor |
| Power Supply Lead Length |
1500mm |
| Power Supply Capacity |
Up to 2 compatible 10W LIGHTbars |
| Mounting |
3M VHB Double-Sided Tape |
| Connection |
Plug & Play |
| Warranty |
1 Year |
What’s Included
- 1 x 1000mm Directional COB LED LIGHTbar
- 1 x 12V 2A Australian plug-in power supply
- 3M VHB mounting tape
Important Installation Information
This product is designed as a plug-in lighting system and does not require hardwiring for normal use. Always connect the product using the supplied or specified compatible 12V power supply.
For bathrooms, caravans, workshops or other locations where moisture, heat or unusual environmental conditions may be present, ensure the product is installed only in a location suitable for its electrical and IP rating.
The 240V power supply must be kept away from wet areas and installed in accordance with applicable Australian electrical requirements.
