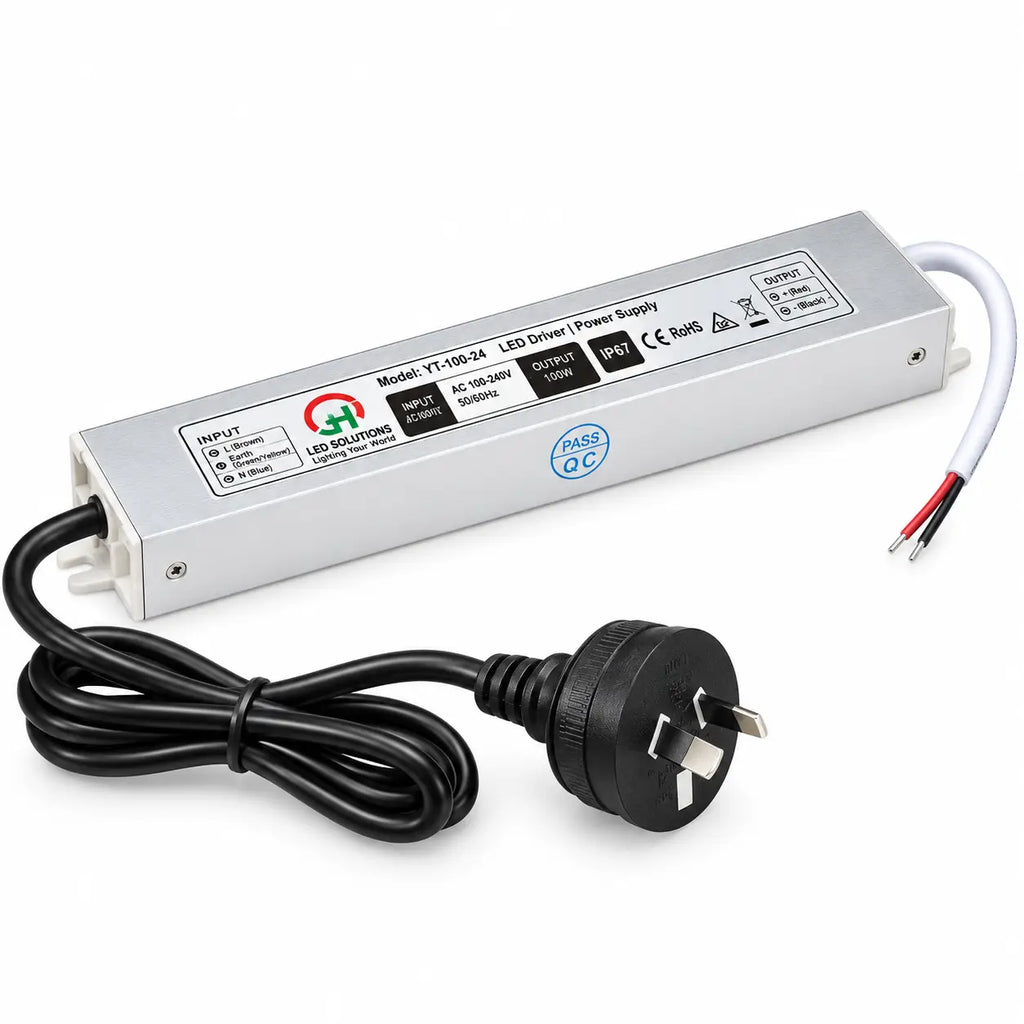

The 100W Constant Voltage LED Driver is a high-quality and reliable power supply designed for indoor and outdoor LED lighting applications. Available in 12V DC or 24V DC versions, it is ideal for powering LED strip lighting, architectural lighting, signage, retrofit projects and general low-voltage lighting installations.
Built for dependable everyday operation, this compact LED driver features a durable IP67-rated housing suitable for demanding environments. Captive terminal screws on both the primary and secondary connections provide secure and convenient installation, while the supplied Australian AS/NZS flex and plug allows for quick connection to a standard mains power outlet.
With a maximum rated output of 100W and a recommended maximum connected load of 80W, this driver provides additional operating headroom to help improve reliability and service life. It is suitable for continuous constant-voltage LED applications where dimming is not required.
Safe & Reliable LED Power Supply
The driver is SELV and EMC compliant and includes built-in protection against overload and short circuits. Safe no-load operation provides additional protection during installation, servicing and maintenance.
- 100W Constant Voltage LED Driver
- Available in 12V DC or 24V DC
- Recommended maximum load: 80W
-
IP67 rated for indoor and outdoor applications
- Supplied with Australian flex and plug
- Captive terminal screws for secure input and output connections
- Suitable for LED strip lighting and other constant-voltage LED products
- Safe no-load operation
- Overload and short-circuit protection
- SELV and EMC compliant
- Non-dimmable
- 3-year replacement warranty
Ideal For
- LED strip lighting installations
- Residential and commercial LED lighting
- Indoor and outdoor lighting systems
- Architectural and feature lighting
- Signage and display lighting
- Retrofit and maintenance applications
Specifications
| Driver Type |
Constant Voltage LED Driver |
| Output Voltage |
12V DC or 24V DC |
| Maximum Output Power |
100W |
| Recommended Maximum Load |
80W |
| Dimmable |
No |
| IP Rating |
IP67 |
| Input Connection |
Australian AS/NZS Flex & Plug |
| Protection |
Overload & Short-Circuit Protection |
| Compliance |
SELV & EMC Compliant |

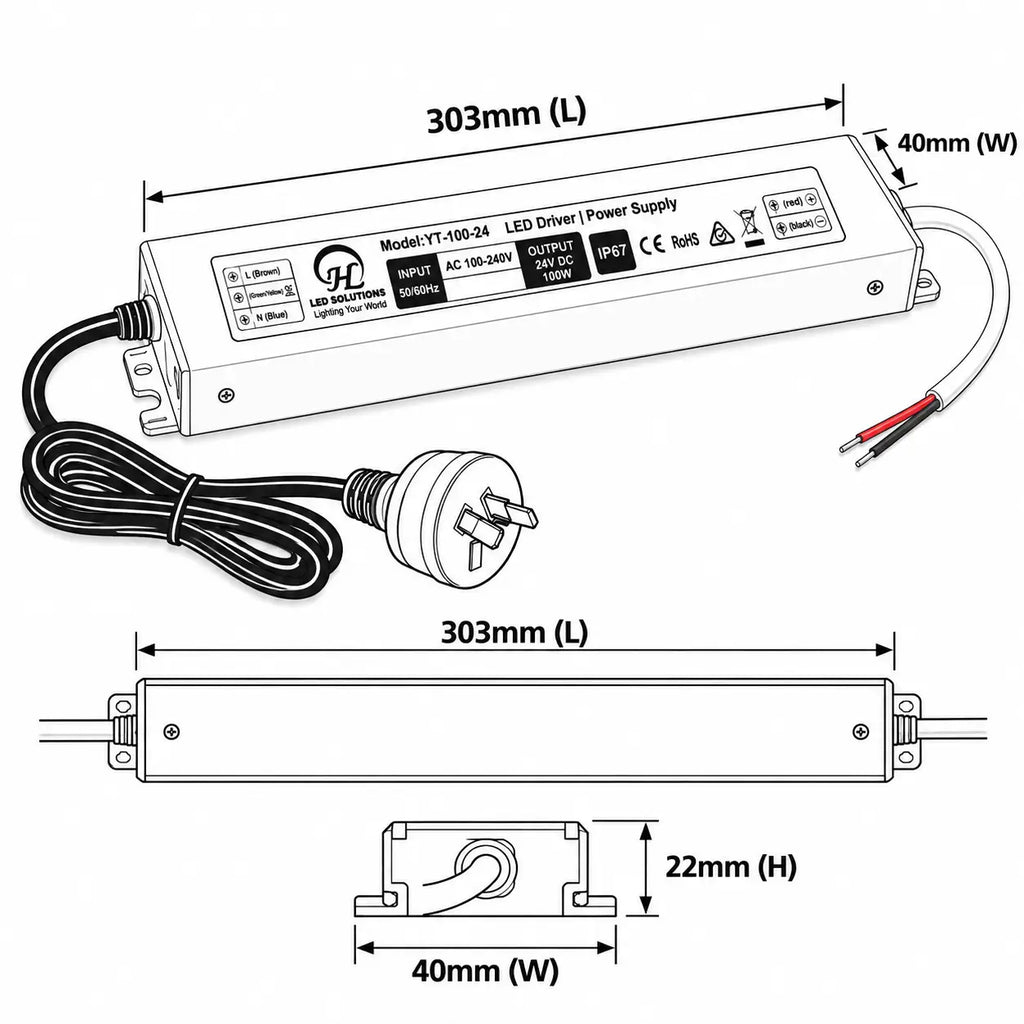

| Dimensions |
303mm (L) × 40mm (W) × 22mm (H) |
| Warranty |
3 Years |
Installation note: For optimum reliability and service life, we recommend keeping the connected LED load at or below 80W.
