Description
The Green Earth 10 Pack 5mm COB LED Strip Connectors provides a fast, clean and solder-free solution for joining compatible 5mm single-colour COB LED strip lights. Designed specifically for 2-pin strip-to-strip connections, these transparent quick connectors make it easy to join or extend COB LED strip without soldering or additional joining wires.
Simply insert compatible 5mm IP20 COB LED strip into each side of the connector and secure it in position. The transparent PC housing creates a discreet, professional connection, making these connectors particularly suitable for slim aluminium LED profiles, under-cabinet lighting, joinery and architectural linear lighting installations.
Supplied as a convenient pack of 10 connectors, they are ideal for electricians, lighting installers, cabinet makers and DIY lighting projects requiring multiple reliable 5mm COB LED strip joins.
5mm COB LED Strip Connector Features
- Pack of 10 strip-to-strip LED connectors
- Designed for 5mm wide COB LED strip
- 2-pin configuration for single-colour / single-CCT LED strip
- Strip-to-strip connection – no joining wire required
- Solderless installation for fast and easy assembly
- Compatible with matching IP20 COB LED strip
- Transparent PC housing for a clean, discreet appearance
- Secure electrical contact for reliable LED strip connections
- Suitable for compatible 5V, 9V, 12V, 18V, 24V, 36V and 48V strip systems
- Ideal for slim aluminium LED profile installations
- Suitable for professional and DIY LED lighting projects
Technical Specifications
| Product Type | COB LED Strip-to-Strip Connector |
| Pack Quantity | 10 Connectors |
| Strip Width | 5mm |
| Connection Type | Strip-to-Strip |
| Pin Configuration | 2 Pin |
| LED Strip Type | Single Colour / Single CCT |
| Compatible Strip | Matching 5mm IP20 COB LED Strip |
| Installation | Solderless / Tool-Free |
| Rated Current | Up to 6A |
| Rated Voltage | 5V / 9V / 12V / 18V / 24V / 36V / 48V |
| Material | Transparent PC |
| Temperature Resistance | 80°C |
| Working Temperature | -10°C to +40°C |
| Allowable Humidity | 15%–90% |
| Salt Spray Test | Neutral Salt Spray 24H |
Quick Solderless 5mm Strip-to-Strip Connection
These 5mm solderless COB LED strip connectors eliminate the need to solder two sections of compatible LED strip together. The strip-to-strip design allows two sections of 5mm COB LED strip to connect directly, helping reduce installation time while creating a compact and professional join.
The narrow 5mm format makes these connectors particularly useful for ultra-slim COB LED strip installations where space is limited. Their transparent housing also helps minimise the visual impact of the connection when installed inside a compatible aluminium LED channel or profile.
Ideal Applications
- 5mm COB LED strip lighting installations
- Ultra-slim LED strip applications
- Kitchen and under-cabinet lighting
- Wardrobe and joinery lighting
- Slim aluminium LED profile systems
- Architectural linear lighting
- Display and showcase lighting
- Retail and commercial fit-outs
- Residential LED lighting projects
Check Your 5mm LED Strip Compatibility
Important: A 5mm strip width alone does not guarantee compatibility. COB LED strip manufacturers can use different PCB layouts and contact-pad configurations.
Before ordering, please confirm that your COB LED strip is:
- 5mm wide
- IP20 / non-waterproof
- 2 pin
- Single-colour or single-CCT
- Using contact pads and PCB wiring that align correctly with the connector contacts
Connectors cannot be guaranteed to fit LED strips with incompatible PCB wiring, contact-pad positioning or strip construction. Compatibility-related issues are not considered a product fault.
What's Included

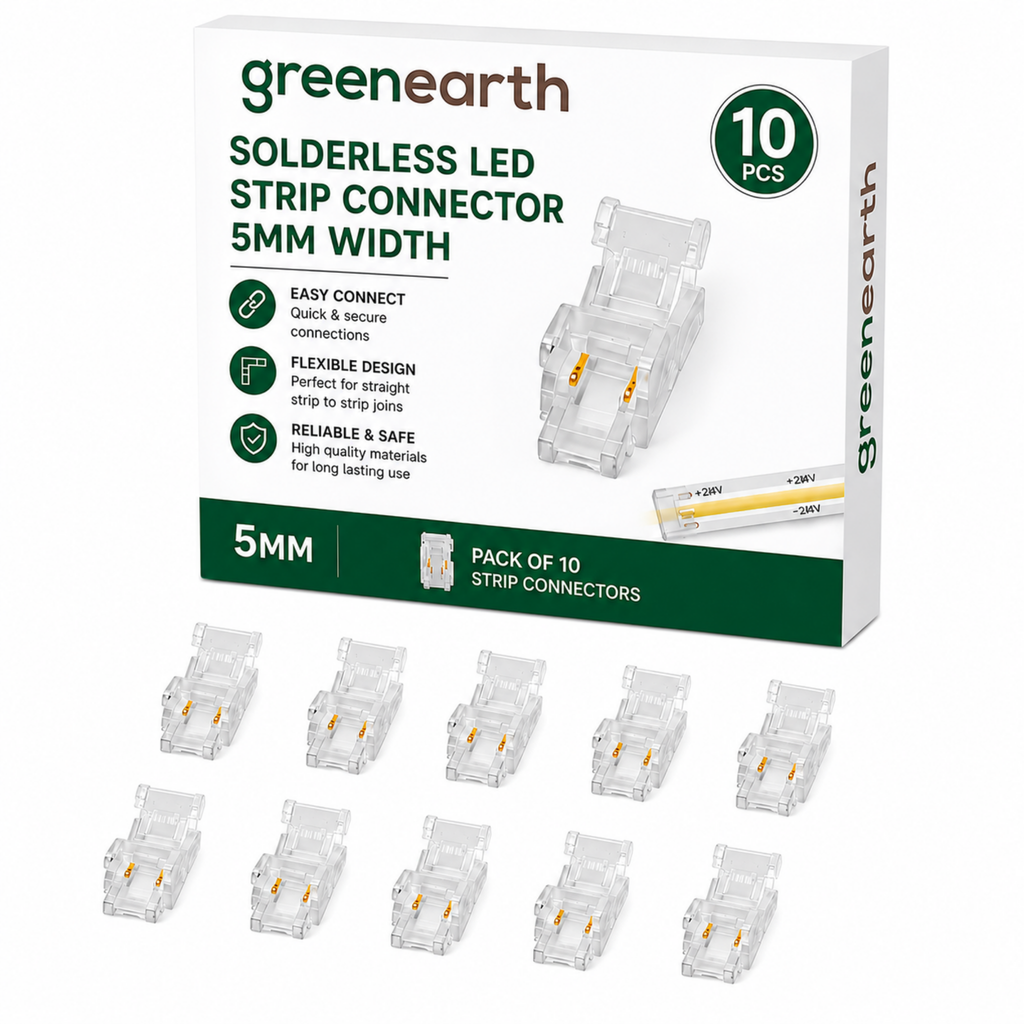

10 × 5mm 2-Pin COB LED Strip-to-Strip Solderless Connectors
Frequently Asked Questions
What LED strip is this 5mm connector designed for?
It is designed for compatible 5mm wide, 2-pin, single-colour or single-CCT IP20 COB LED strip. Always check the PCB contact-pad configuration before ordering.
Do I need to solder the COB LED strip?
No. These are solderless LED strip connectors. Compatible 5mm COB LED strip can be inserted directly into the connector, allowing two strip sections to be joined without soldering.
How many 5mm connectors are included?
Each pack contains 10 individual 5mm strip-to-strip COB LED connectors.
Can I use these connectors with RGB COB LED strip?
No. This connector uses a 2-pin connection and is intended for single-colour or single-CCT COB LED strip. RGB and multi-channel strips require connectors with the appropriate number of contacts.
Are these 5mm COB connectors waterproof?
No. These connectors are intended for compatible IP20 non-waterproof COB LED strip and indoor applications.
Can these connectors be used inside aluminium LED profiles?
Yes, provided the connector fits within the internal dimensions of your chosen aluminium profile. Their compact 5mm strip compatibility makes them particularly useful for slim LED strip and profile installations.
Will these connectors fit every 5mm COB LED strip?
Not necessarily. PCB wiring and contact-pad positions can vary between manufacturers. Check that your strip is 5mm wide and 2-pin and that its contact pads align correctly with the connector before purchasing.
