Smooth, Precise Control for 1–10V LED Drivers 💡
- ✅ Seamless 1–10V Analogue Dimming: Achieve precise brightness adjustments for compatible LED drivers.

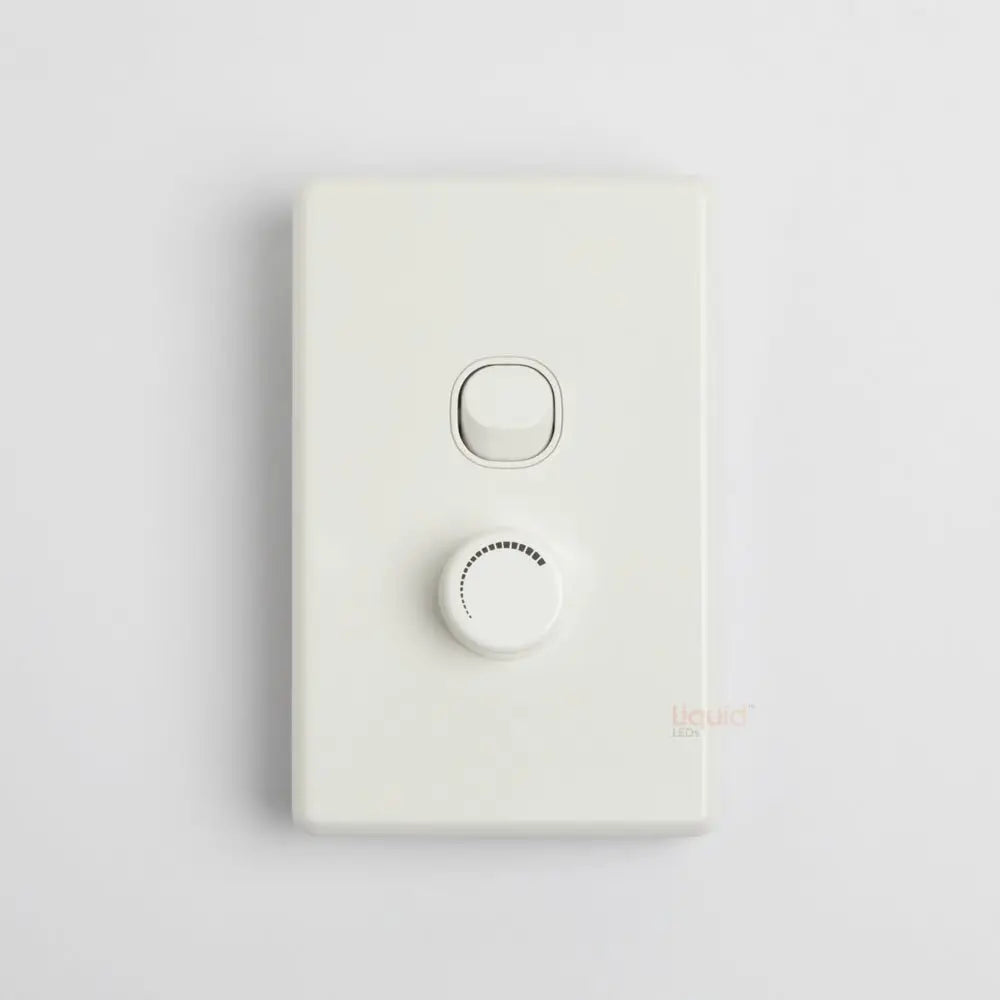

- ✅ Compact Retrofit Module: Easily integrates behind your existing Clipsal wall plate.
- ✅ Flexible DC Power Supply: Operates on a 12–24V DC input for versatile installations.
- ✅ Supports Multiple Drivers: Controls up to 30 LED drivers per dimmer (follow manufacturer guidelines).
- ✅ Durable Indoor Design: Rated IP20 for safe indoor use.
- ✅ Comprehensive Warranty: Backed by a 12-month manufacturer’s warranty.

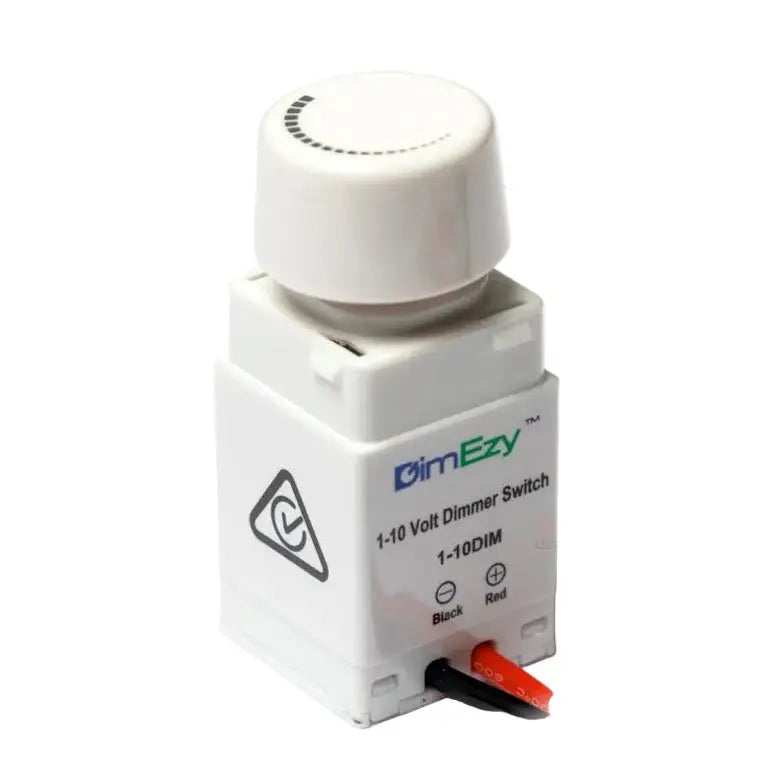

Enhance your lighting project with the 1–10V LED dimming switch, a professional-grade solution designed for optimal performance. This compact module is specifically engineered to retrofit seamlessly behind your existing Clipsal wall plate, making it an excellent choice for 1–10V dimmable LED drivers that power strips or low-voltage luminaires. It provides clean and stable analogue control while maintaining a discreet form factor, ensuring both functionality and aesthetic appeal. The module operates on a 12–24V DC power supply and is rated for indoor use with an IP20 protection level, ensuring safety and reliability. Additionally, it comes with a 12-month warranty for peace of mind.
Technical Specifications
| Specification |
Details |
| Control type |
1–10V analogue dimming (for compatible LED drivers/fixtures) |
| Supply voltage |
12–24V DC |
| Max drivers per dimmer |
Up to 30 (driver-dependent; follow manufacturer guidance) |
| Ingress protection |
IP20 (indoor) |
| Dimensions |
22.5 × 22.5 × 28.6 mm |
| Wall plate |
Not included (module only; retrofit behind your plate) |
| What’s included |
1–10V dimming module, user guide |
Lighting Effect
Experience smooth, incremental dimming from bright to low levels, allowing for precise control over your lighting environment. The analogue 1–10V control ensures a consistent and elegant look as you adjust brightness—an ideal solution for living areas, hospitality venues, display joinery, and workspaces.
Ideal Applications
- LED strip lighting in cabinetry, shelving, and architectural features
- Commercial fit-outs & hospitality environments where low-glare, reliable dimming is essential
- Multi-driver installations (up to 30 drivers per dimmer, driver-dependent) for larger projects
- Retrofits utilizing your existing wall plate for a cohesive aesthetic
Installation Notes & Safety
- Installation by a licensed electrician is recommended.
-
Always disconnect power before installation and wiring.
- Avoid connecting two or more dimmers in parallel or series to control the same load.
- Ensure to observe polarity on all low-voltage connections.
- The module is supplied without a wall plate and is designed to fit behind your existing plate.
